Leveling Base

Name: Leveling Base
Brand: GINTECH
SKU: LBDA
Availability: BackOrder

Product NO: LBDA

Quote upon request

This is a back-order item

Specification

Material：Stainless steel

Hardness：HRC50°～55°

Parallelism: Within 0.003 mm / 100 mm

Squareness: Within 0.005 mm / 100mm

Heat treatment: Vacuum hardening

●Compatible with System 3R standards and interoperability.

●It is used as a base for clamp components compatible with the Zero Point 3R System.

●It must be mounted on a System 3R-compatible base.

●It must be used in combination with the RED Reference Element.

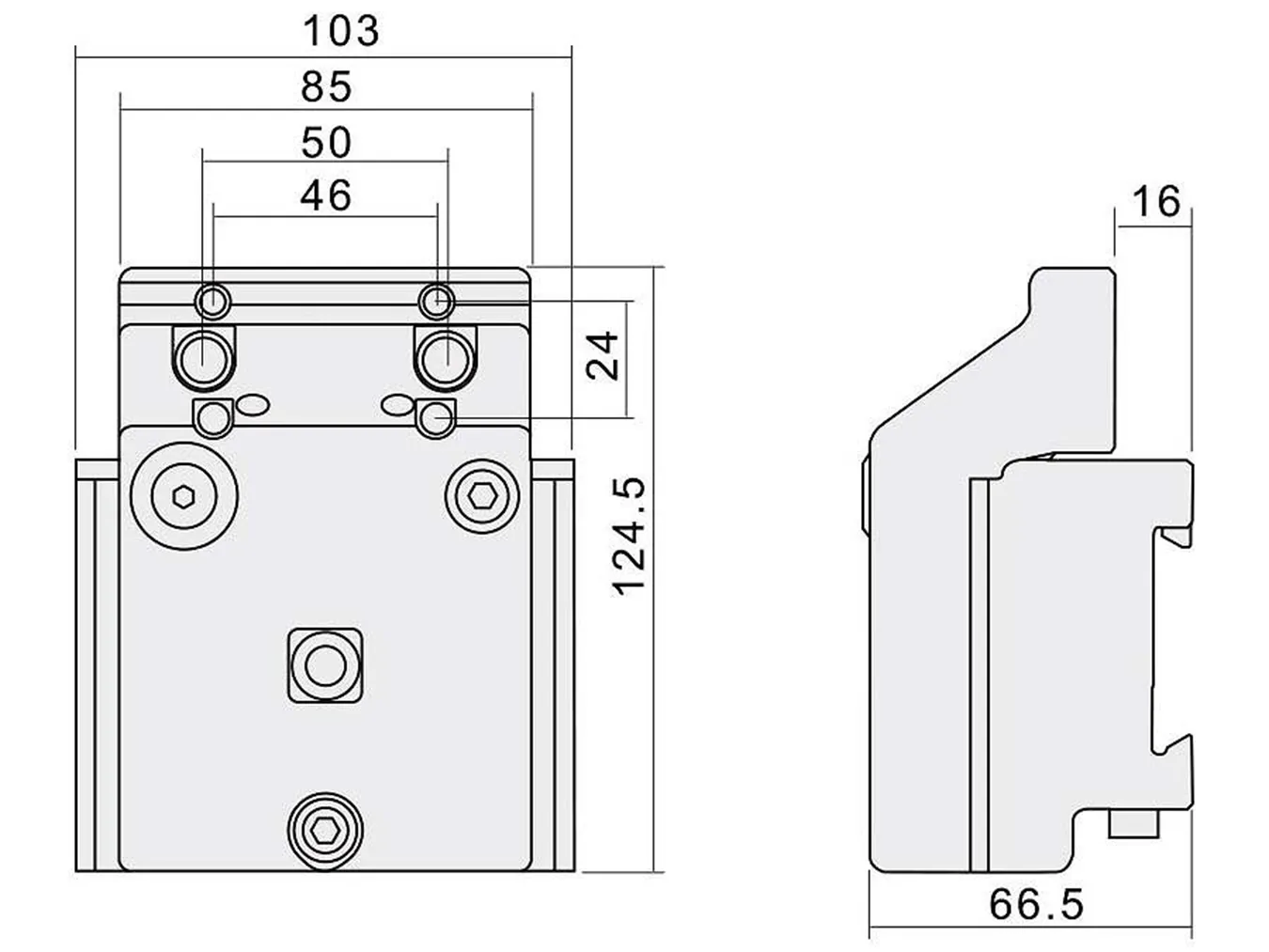

unit：mm

Product NO	LBDA
weight（kg）	3.1
