Tabletop Demagnetizer
Product NO: HD-SM
Quote upon request
Specification
●Demagnetizer designed specifically for mold and die applications, including press dies and powder metallurgy molds.
●Ideal for flat components and mold assemblies.
●Demagnetization area size can be customized to meet specific application requirements.
●The demagnetizing magnetic field penetrates deeply into grooves, cavities, and internal sections of molds and dies.
●Tesla meter included as standard equipment.
●Demagnetization height: 150 mm.
Product Specifications (Variations)
unit：mm| Product NO | Demag.Area（L×W×H）mm | size | Applicable ring size length | Applicable ring size width | Applicable ring size Height | Voltage | current |
|---|---|---|---|---|---|---|---|
| HD-SM3050 | 500×300×150 | 700×540×800mm | 500mmor less | 300mmor less | 150mmor less | AC220V | 45A |

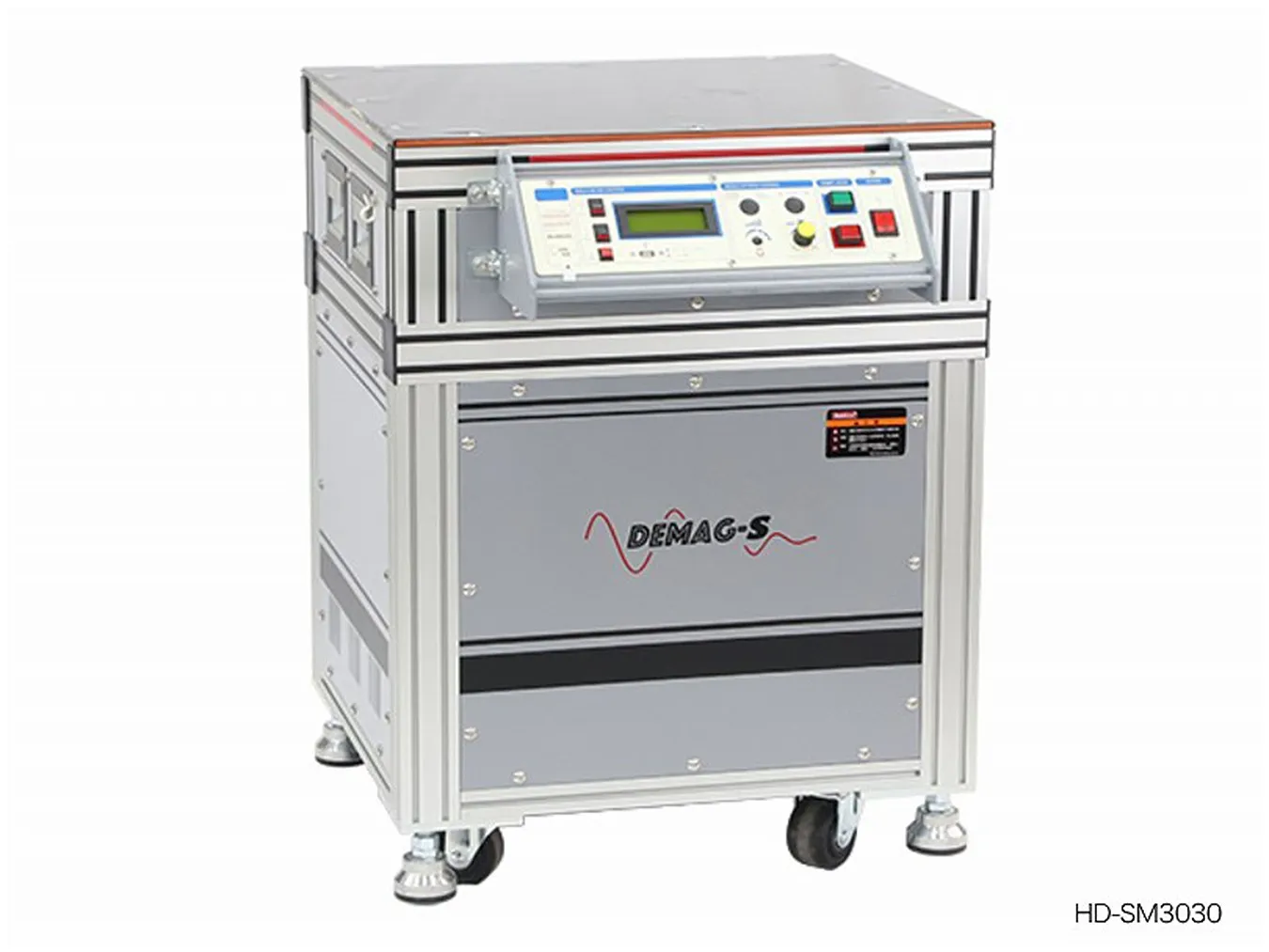

| HD-SM3030 | 300×300×150 | 600×500×800mm | 300mmor less | 300mmor less | 150mmor less | AC220V | 30A |

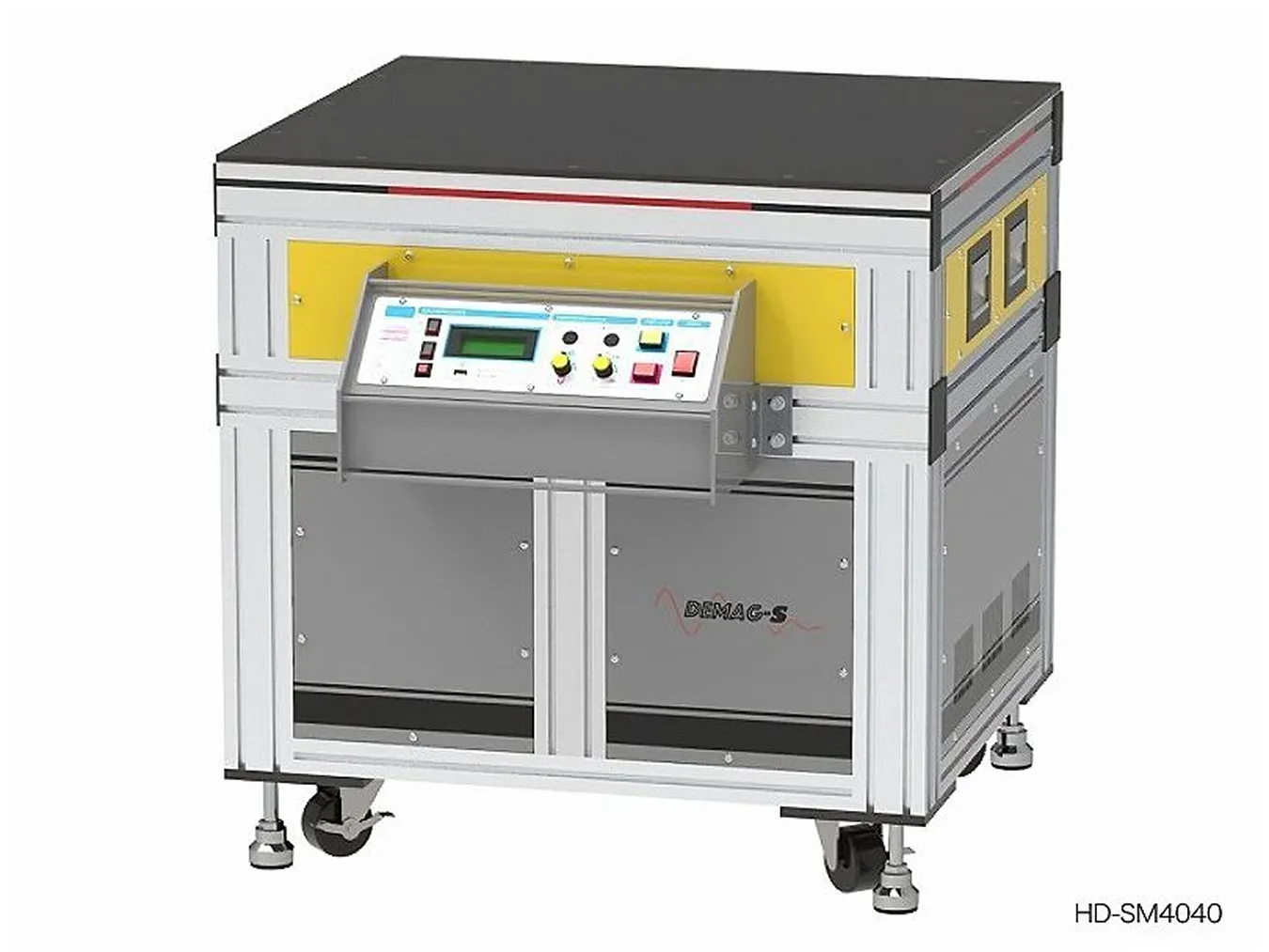

| HD-SM4040 | 400×400×150 | 890×800×800mm | 400mmor less | 400mmor less | 150mmor less | AC220V | 50A |
