Wire EDM Vise

Product NO: FT-WPV240-300

Price range: ¥654,000 through ¥825,000

Product name
Product NO
Jaw (opening × thickness × depth)
Price
Stock
Quantity

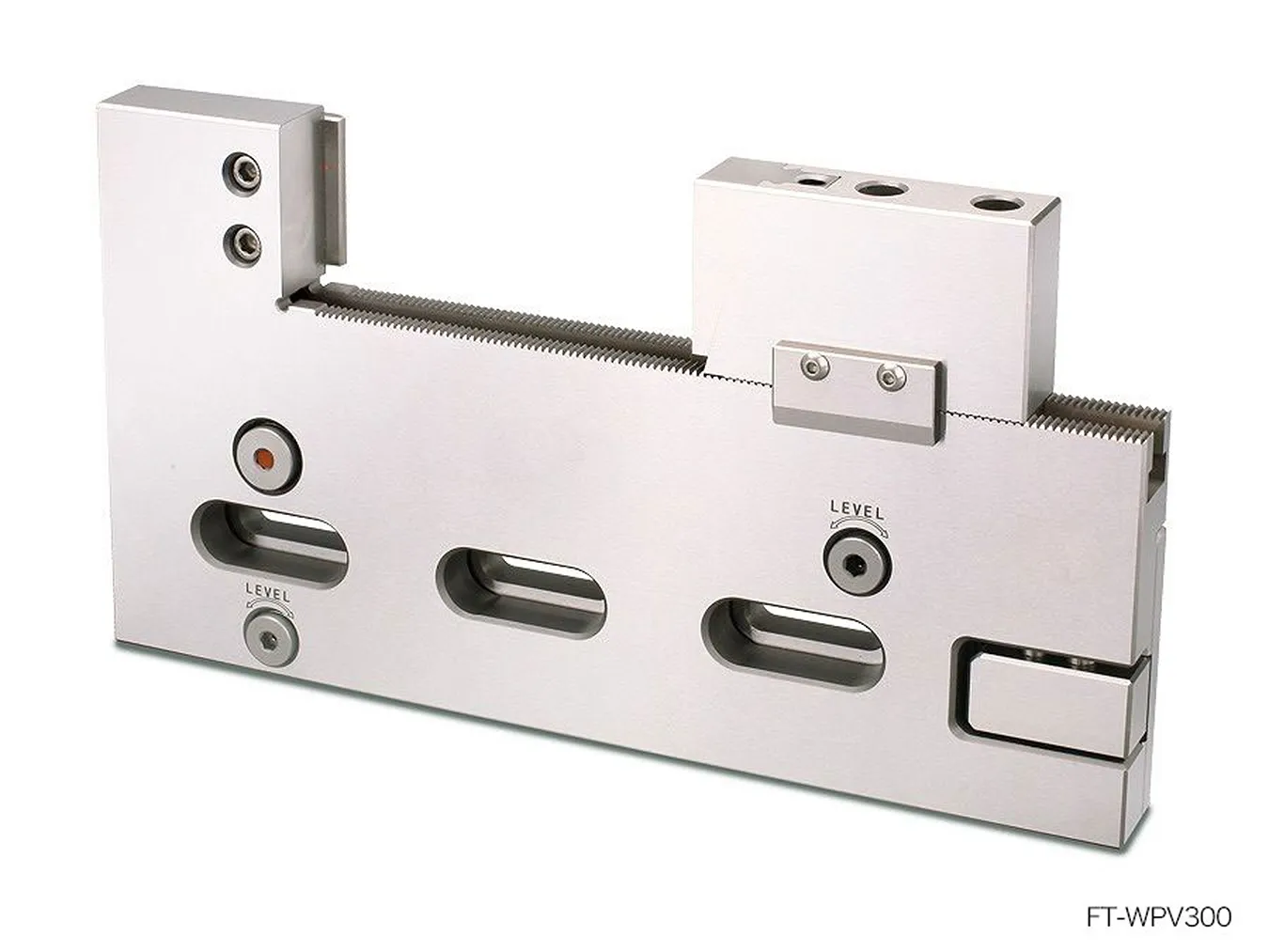

Wire EDM Vise
FT-WPV240
100×24×50mm
¥654,000

This is a back-order item

Wire EDM Vise
FT-WPV300
150×24×50mm
¥825,000

This is a back-order item

Specification

●Adjustable in the vertical, lateral, and longitudinal directions.
●The lower stop is removable.
●A clearance of 0.5 mm is provided after adjustment to prevent interference with the wire guide assembly.
Material：SUS440
Hardness：HRC45°～55°
Heat treatment：Vacuum Quenching and Sub-zero Treatment
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included

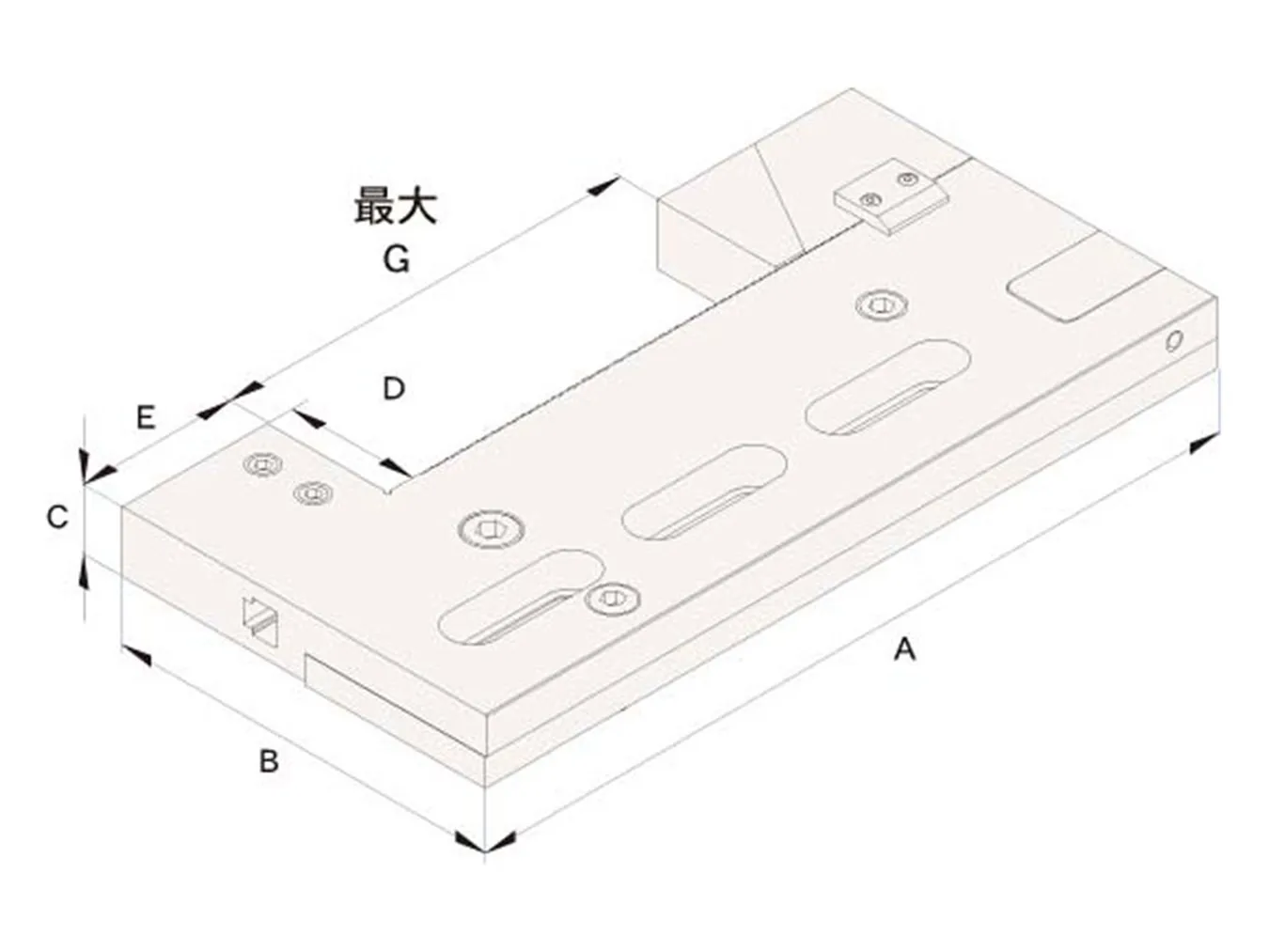

Product Specifications (Variations)

unit：mm
Product NOABCDEGweight（kg）
FT-WPV2402451602450551005.4kg
FT-WPV3003001602450601507.8kg
