Wire EDM Vise
Product NO: FT-WDV280
¥982,000
This is a back-order item
Specification
Material：STAVAX
Hardness：HRC45°～55°
Heat treatment：Vacuum Quenching and Sub-zero Treatment
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
With 45° Jaw design, workpiece anti-floating when clamp.
Adopting ball bearings and make 3-axis adjustment much more efficient. High water pressure resistance when clamping.
Clamping range for round workpiece: Ø 3 ~ Ø 38 mm
In small V groove: Ø 3 ~ Ø 20 mm
In large V groove: Ø 10~ Ø 38 mm

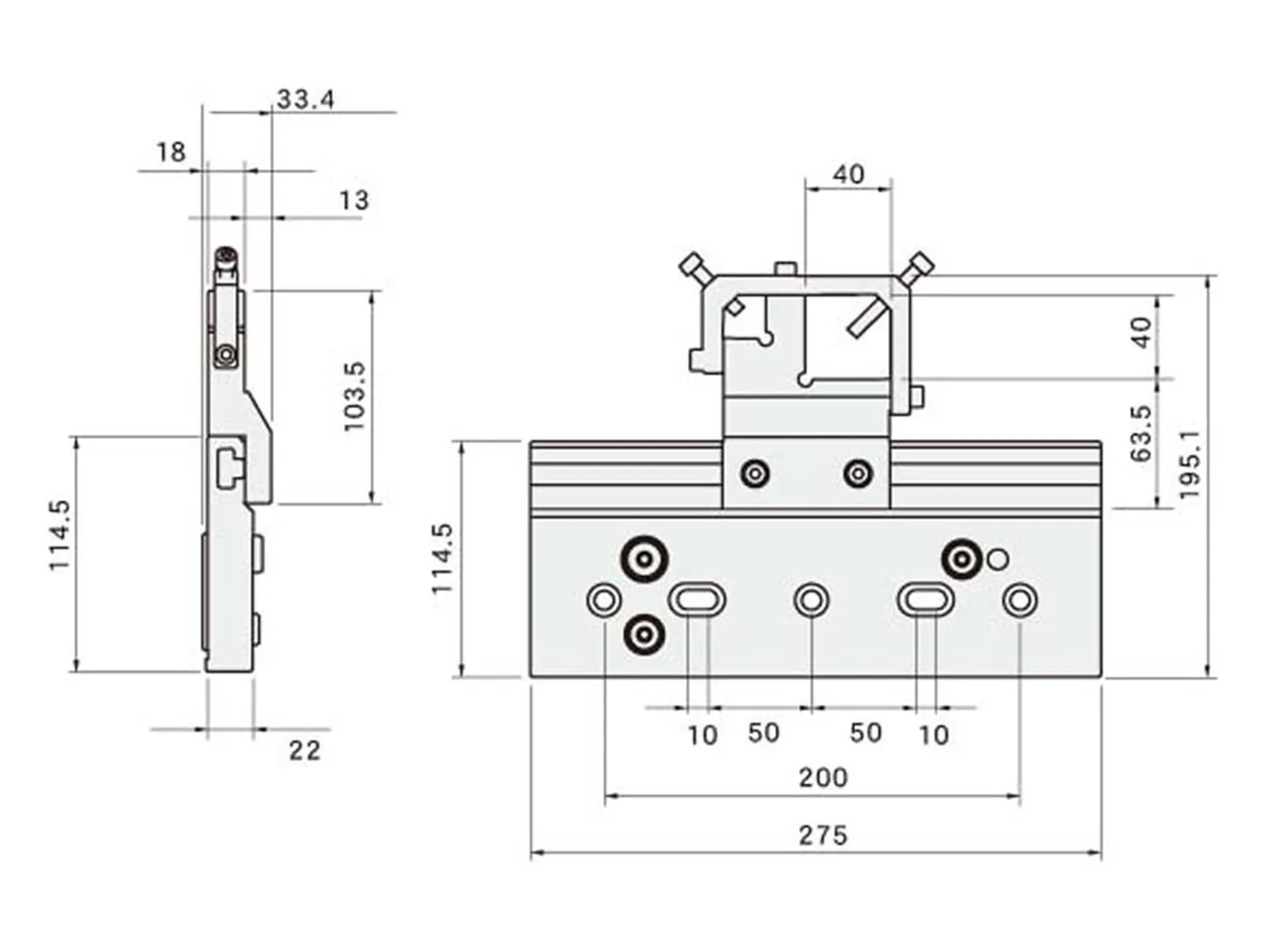

unit：mm
| Product NO | FT-WDV280 |
|---|---|
| Gripping range Small clamp | Ø3-Ø20 |
| Gripping range Big clamp | Ø10-Ø38 |
| weight（kg） | 5.7kg |
