Universal Wheel Dresser

Product NO: FT-WD165

Quote upon request

1 in stock (can be backordered)

※Diamond pin is not included.

Specification

WD165 universal grinding wheel dresser is suitable for surface grinders and universal tool grinders to dress various sectional grinding wheels composed of straight lines and arcs.

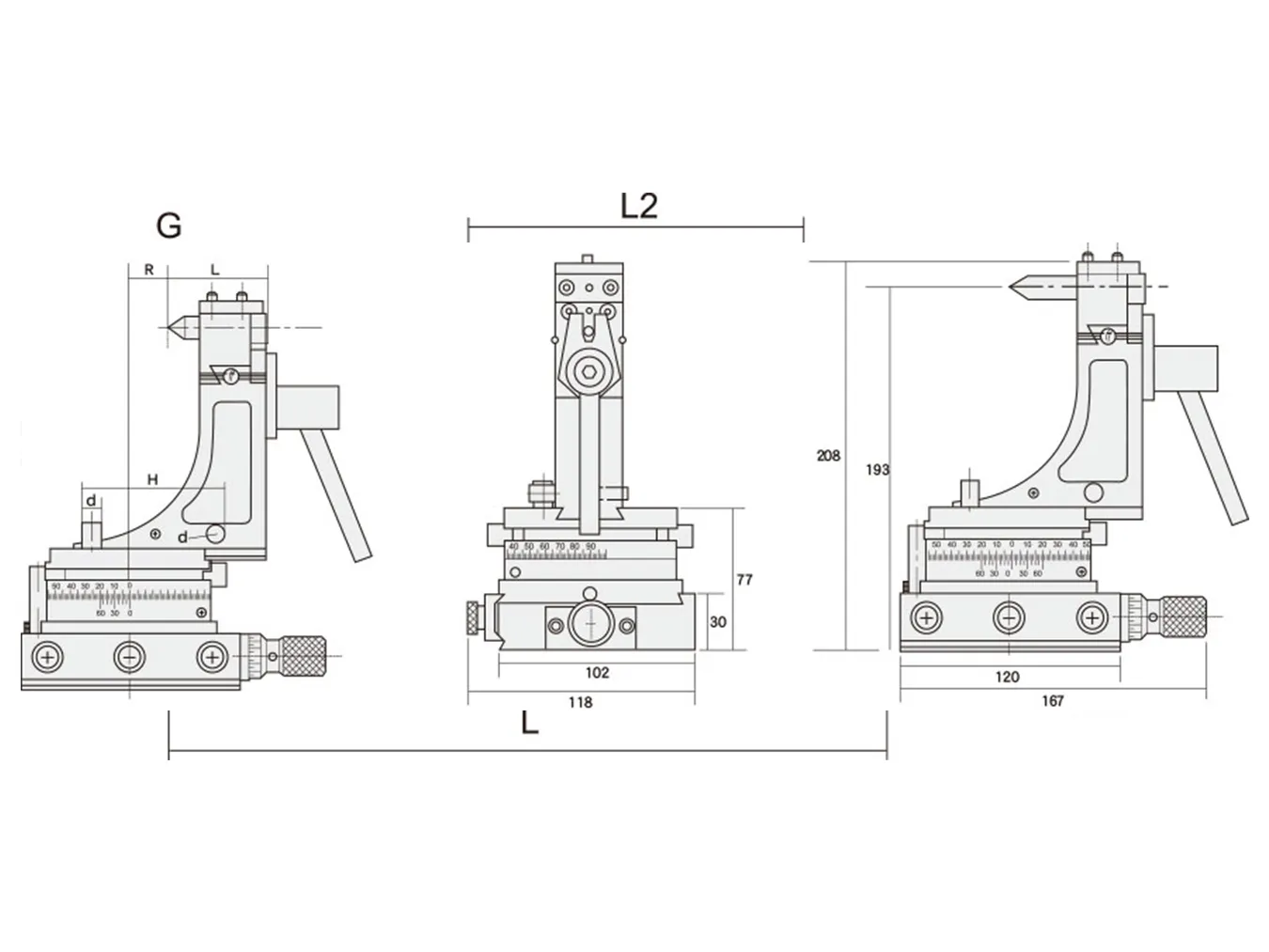

unit：mm

Product NOFT-WD165
Center height193
Measuring guide diameterØ10mm
Max. swing distance of diamond cutter±14mm
Max. wheel diameterØ200mm
Reading accuracy of turret index5'
Max. translation of feed25mm
Max.dressing convex arc50R
Max.dressing concave arc0-100R
