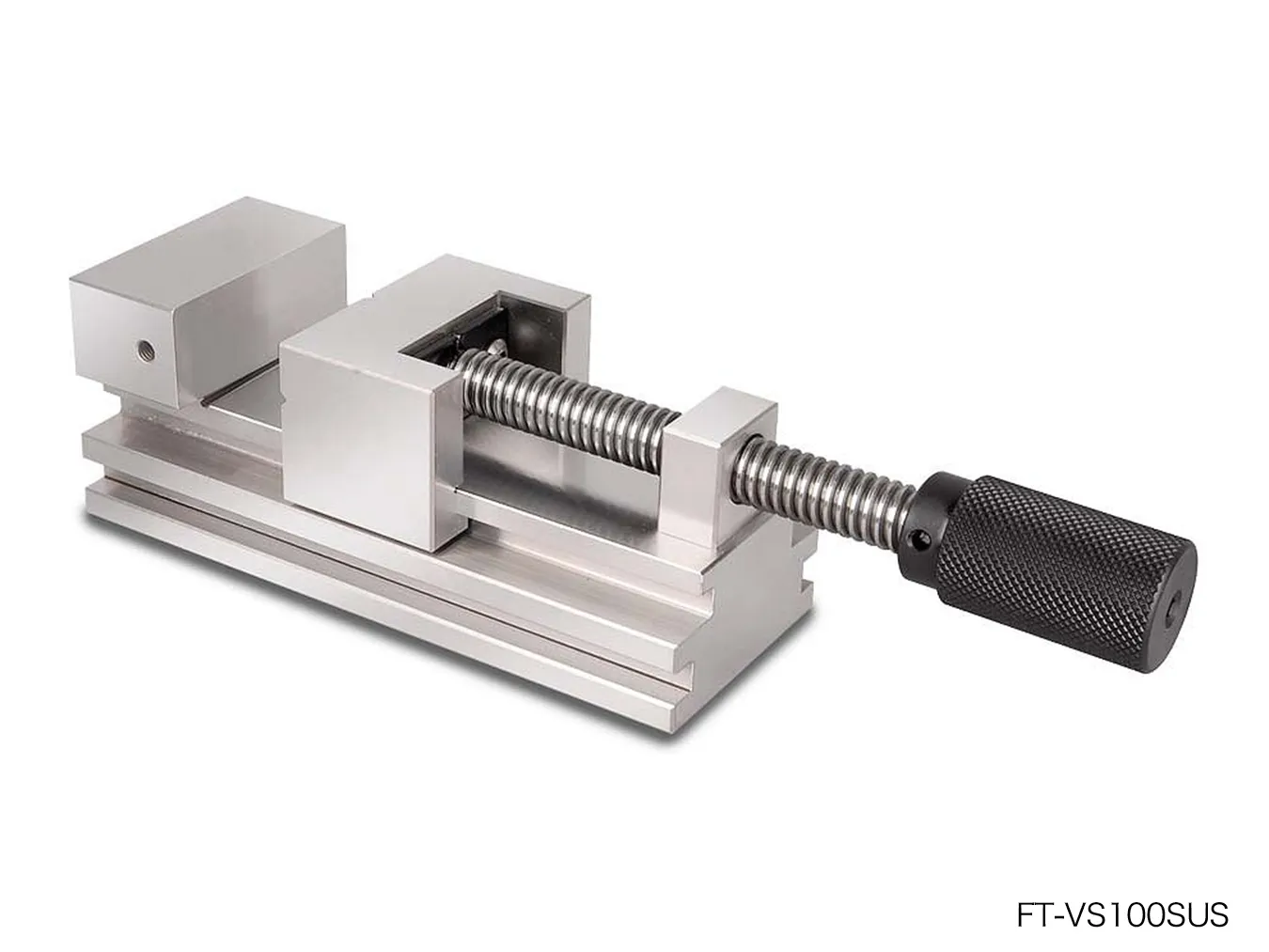

Stainless Steel Precision Vise
Product NO: FT-VWSUS
Price range: ¥138,000 through ¥150,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material：SUS440
Hardness：HRC48°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.003 mm / 100mm
Inspection Certificate: Included
Storage Case: Included

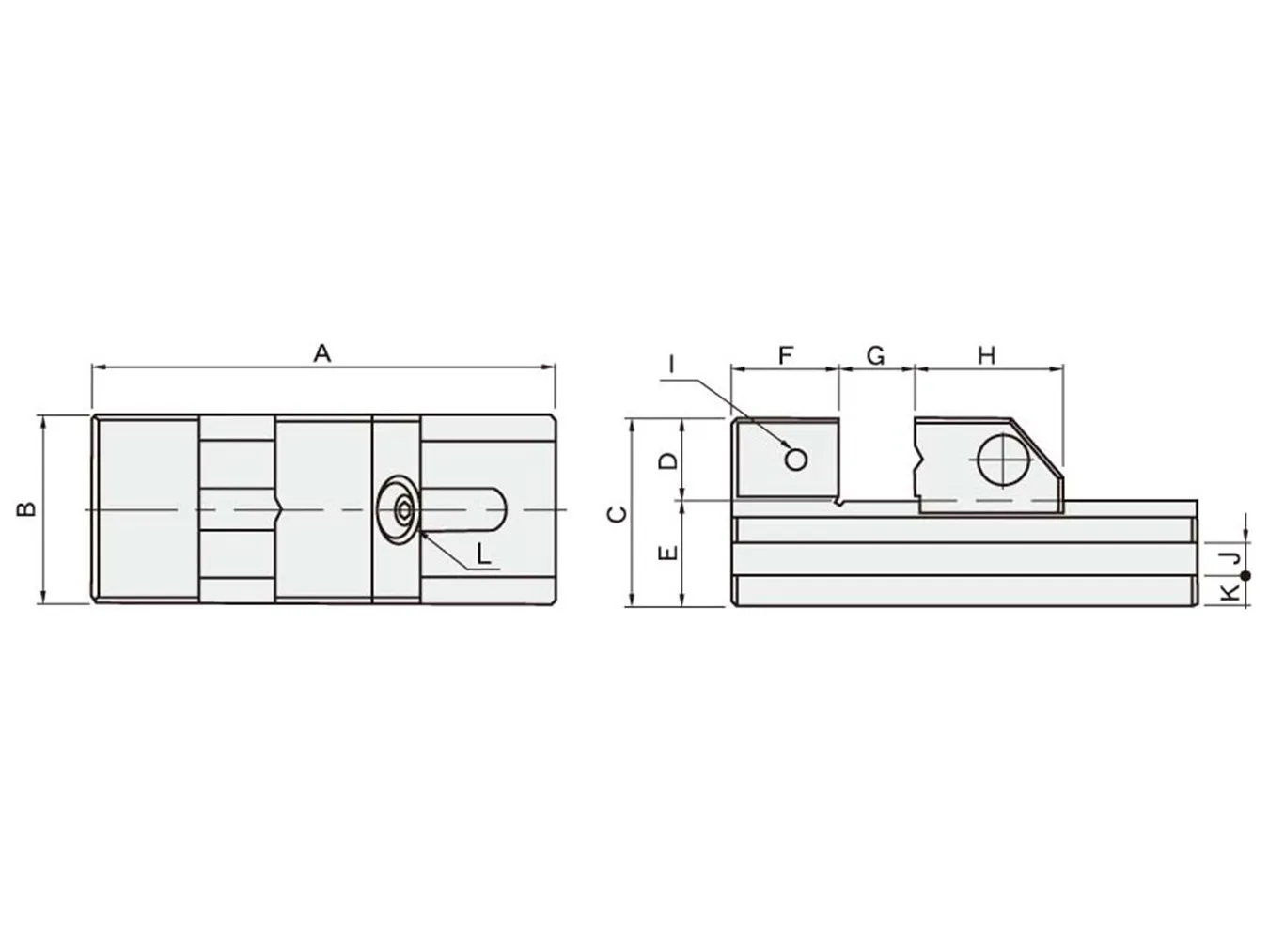

Product Specifications (Variations)
unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J(WxD) | K | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VW75SUS | 140 | 50 | 53 | 25 | 28 | 25 | 0-75 | 40 | M6 | 6x5 | 8.5 | 1.5kg |
| FT-VW100SUS | 180 | 72 | 62 | 30 | 32 | 35 | 0-100 | 45 | M6 | 8x7 | 9 | 3.0kg |
