Super Precision Tool Maker Vise
Price range: ¥165,000 through ¥700,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Special design to prevent distortion during clamping ensuring the accuracy for work processing on workpieces.
VV Tool Maker Vise is made of high quality alloy tool steel (SKS)
Material：SKS
Heat treatment: Vacuum hardening
Sub-zero treatment:-185°C
Hardness：HRC58°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.004 mm / 100mm
Inspection Certificate: Included
Storage Case: Included

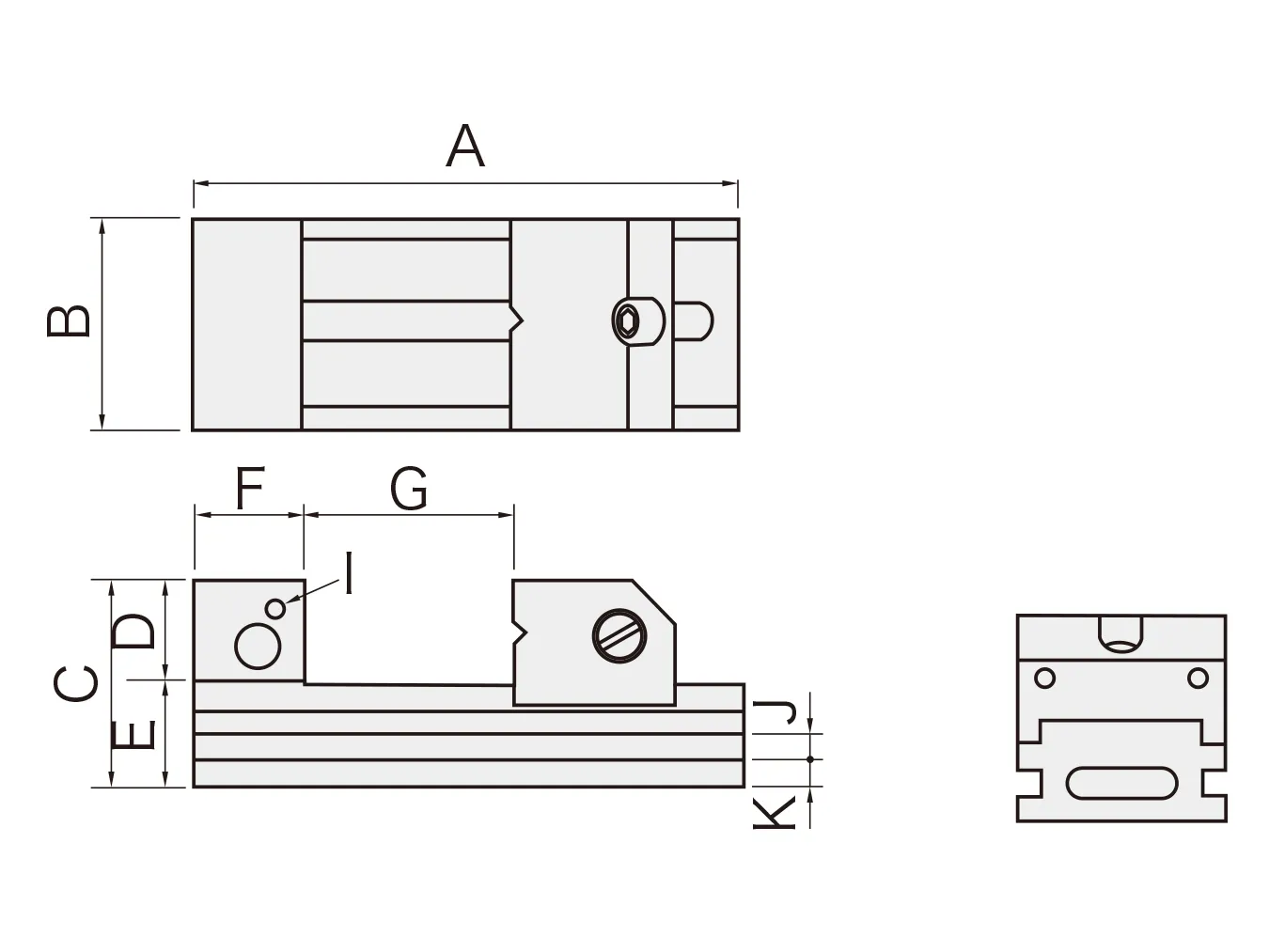

Product Specifications (Variations)
unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | J | K | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VV70SP | 150 | 48 | 53 | 25 | 28 | 25 | 0-70 | M5 | 6 | 8.5 | 1.7kg |
| FT-VV100SP | 190 | 73 | 70 | 35 | 35 | 38 | 0-100 | M6 | 8 | 9.5 | 4.5kg |
| FT-VV125SP | 230 | 98 | 80 | 40 | 40 | 46 | 0-125 | M6 | 10 | 10 | 8.4kg |
| FT-VV160SP | 300 | 125 | 98 | 48 | 50 | 60 | 0-160 | M8 | 12 | 13 | 17.4kg |
| FT-VV210SP | 350 | 150 | 100 | 50 | 50 | 60 | 0-210 | M8 | 12 | 13 | 22.7kg |
