Precision Sine Vise
¥288,000
0 in stock, back ordered
The SKS Precision Sine Vice utilizes gauge blocks to set highly accurate angles. Please determine the required gauge block thickness using a trigonometric function table. Kindly note that gauge blocks are not included and must be provided separately.
Specification
Features：The SKS Precision Sine Vice is manufactured from high-grade SKS alloy tool steel and undergoes a specialized sub-zero treatment to ensure exceptional, long-term dimensional stability with minimal aging distortion.
Material：SKS
Heat treatment: Vacuum hardening
Sub-zero treatment:-185°C
Hardness：ＨＲＣ58°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Max.angle & tolerance:46°±15″
Storage Case: Included
Inspection Certificate: Included
Trigonometric function table included.
●Features：The vice handle angles downward after clamping to eliminate interference with cutting tools.

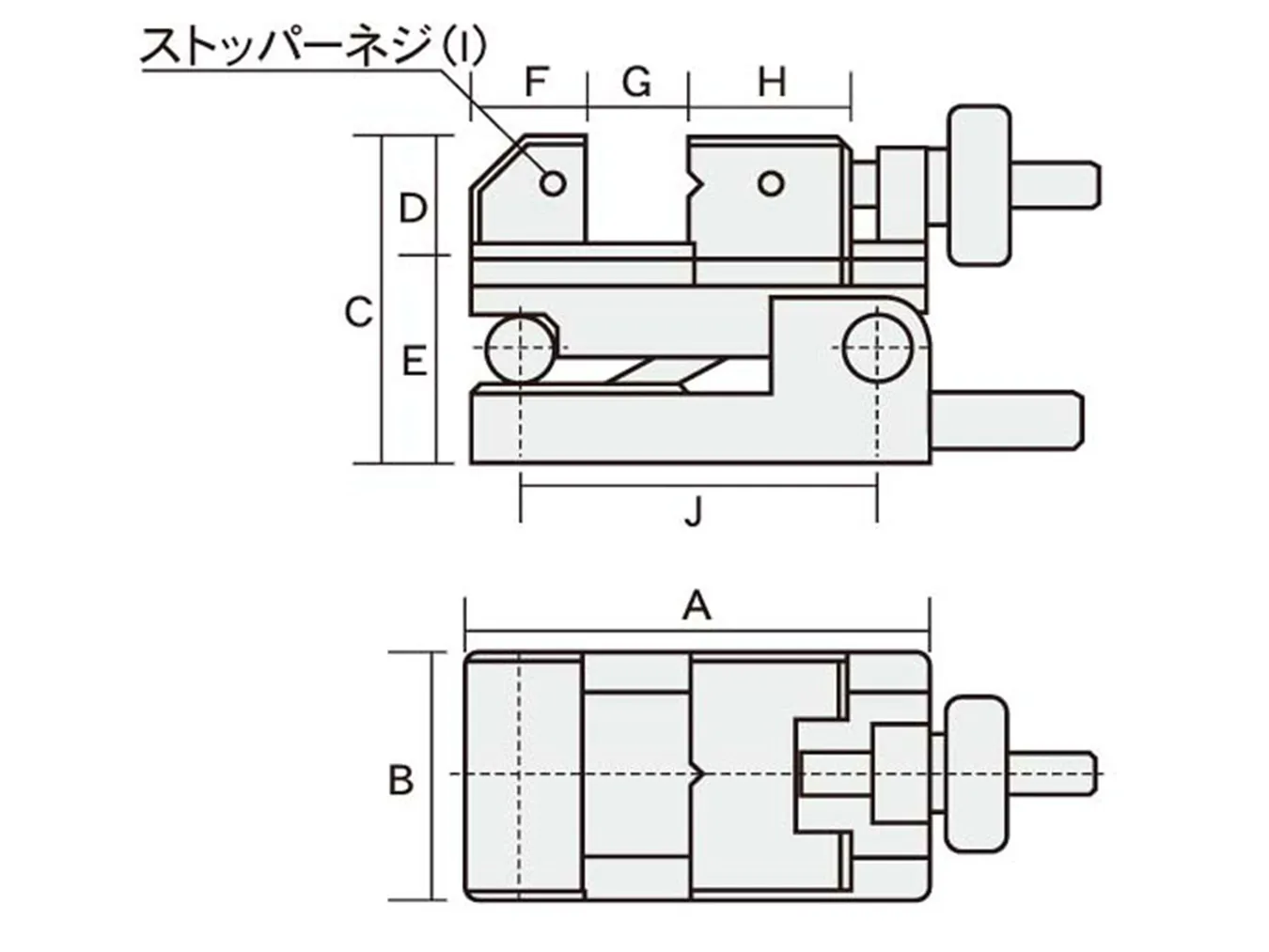

unit：mm
| Product NO | FT-VC100 |
|---|---|
| A | 130 |
| B（Jaw width） | 73 |
| C | 93 |
| D（Jaw height） | 30 |
| E | 63 |
| F | 33 |
| G（Jaw opening） | 0-45 |
| H | 45 |
| I | M5 |
| J | 100 |
| Maximum Inclination angle | 46° |
| weight | 4.6kg |
