ER Collet Slim Holder
Product NO: FT-S-ER
Price range: ¥17,200 through ¥19,500
Specification
●Ultra-slim holder with a reduced nose diameter for improved accessibility.
●Ideal for machining operations in confined areas, such as corner hole drilling.
●Features a through-hole for oil-hole applications.
●Supplied with an ER collet nut.
Product Specifications (Variations)

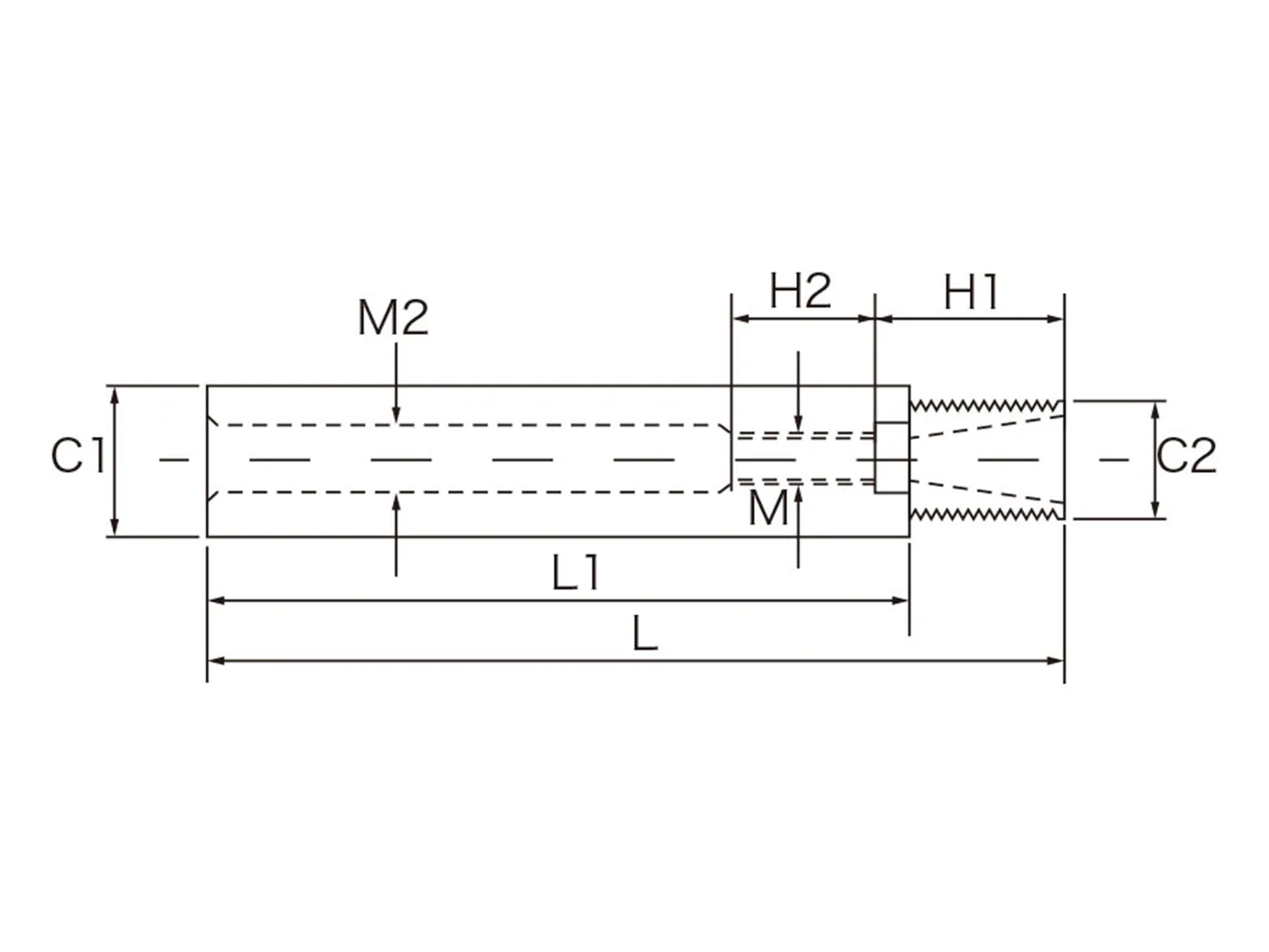

unit：mm| Product NO | Collet nut | C1 | C2 | M | M2 | L | L1 | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| FT-S16ER11-100 | ER11M | 16 | M13×0.75 | M6 | 7 | 112 | 100 | 30 | 30 |
| FT-S20ER16-100 | ER16M | 20 | M19×1 | M10 | 11 | 115 | 100 | 30 | 40 |
| FT-S20ER16-150 | ER16M | 20 | M19×1 | M10 | 11 | 165 | 150 | 30 | 40 |
| FT-S20ER20-100 | ER20M | 20 | M24×1 | M12 | 13 | 130 | 100 | 40 | 40 |
| FT-S20ER20-150 | ER20M | 20 | M24×1 | M12 | 13 | 180 | 150 | 40 | 40 |
