Touch point sensor(energized type)
Product NO: FT-PS-TOUCH-POINT-SENSOR
Price range: ¥13,000 through ¥20,000
Specification
High-sensitivity position detection with visual and audible indication.
Equipped with indicator lamps visible from four positions around the circumference.
Accuracy: 0.005 mm
Standard accessory: Battery
※Battery included: 1 × AAAA (12 V) battery
※As this is an electrically conductive contact-type device, it cannot be used on non-conductive workpieces.
※Not suitable for use in the Z-axis direction.
※Always ensure that the ball tip is in contact with the workpiece during use.
※This product is not waterproof or splash-proof.
Product Specifications (Variations)
unit：mm| Product NO | D | L1 | L2 | d | Features | weight（kg） |
|---|---|---|---|---|---|---|
| FT-PS20 | Ø20 | 158 | 108 | Ø10 | LED-illuminated type | 0.40kg |

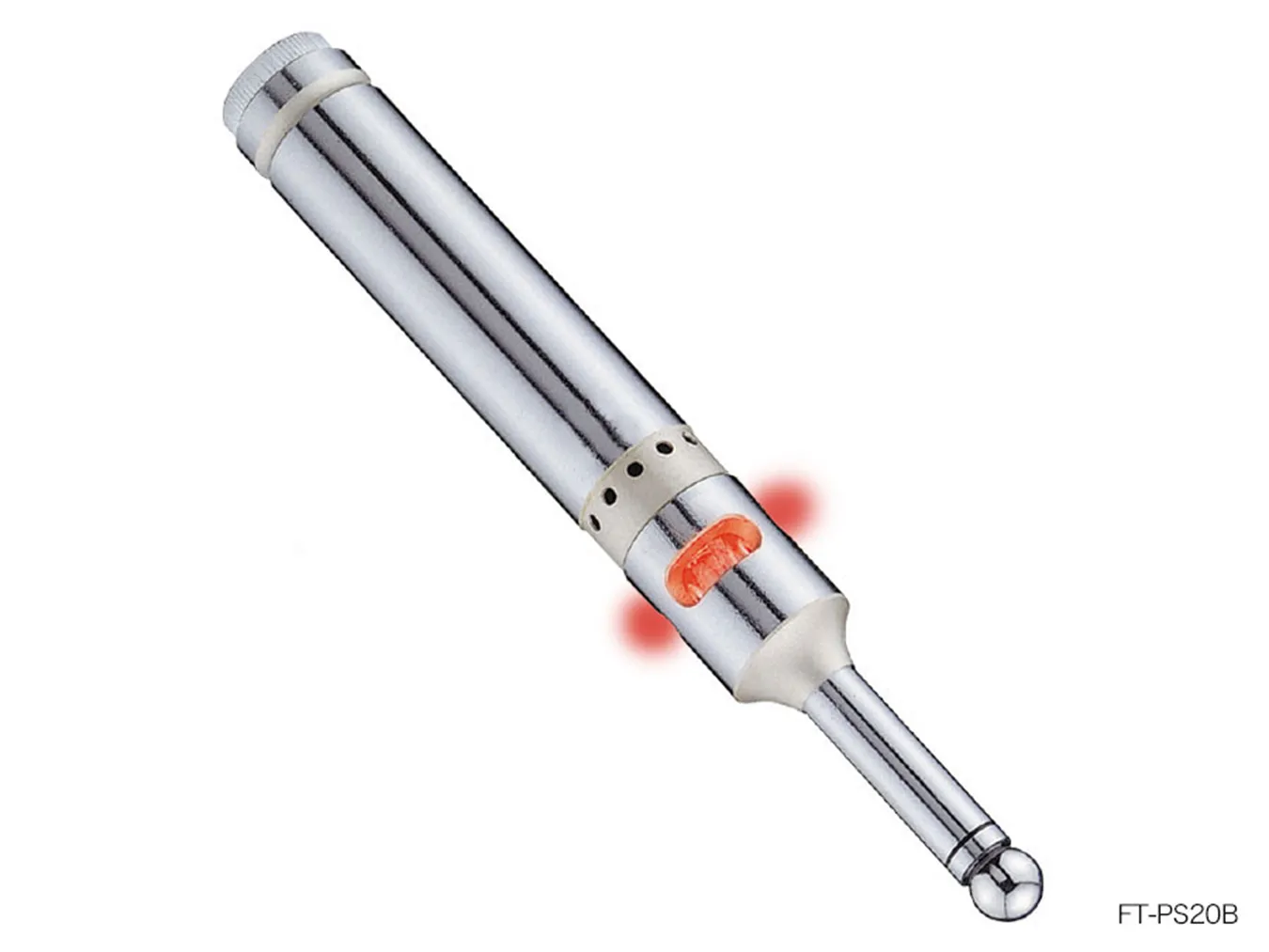

| FT-PS20B | Ø20 | 158 | 108 | Ø10 | LED+buzzer | 0.40kg |

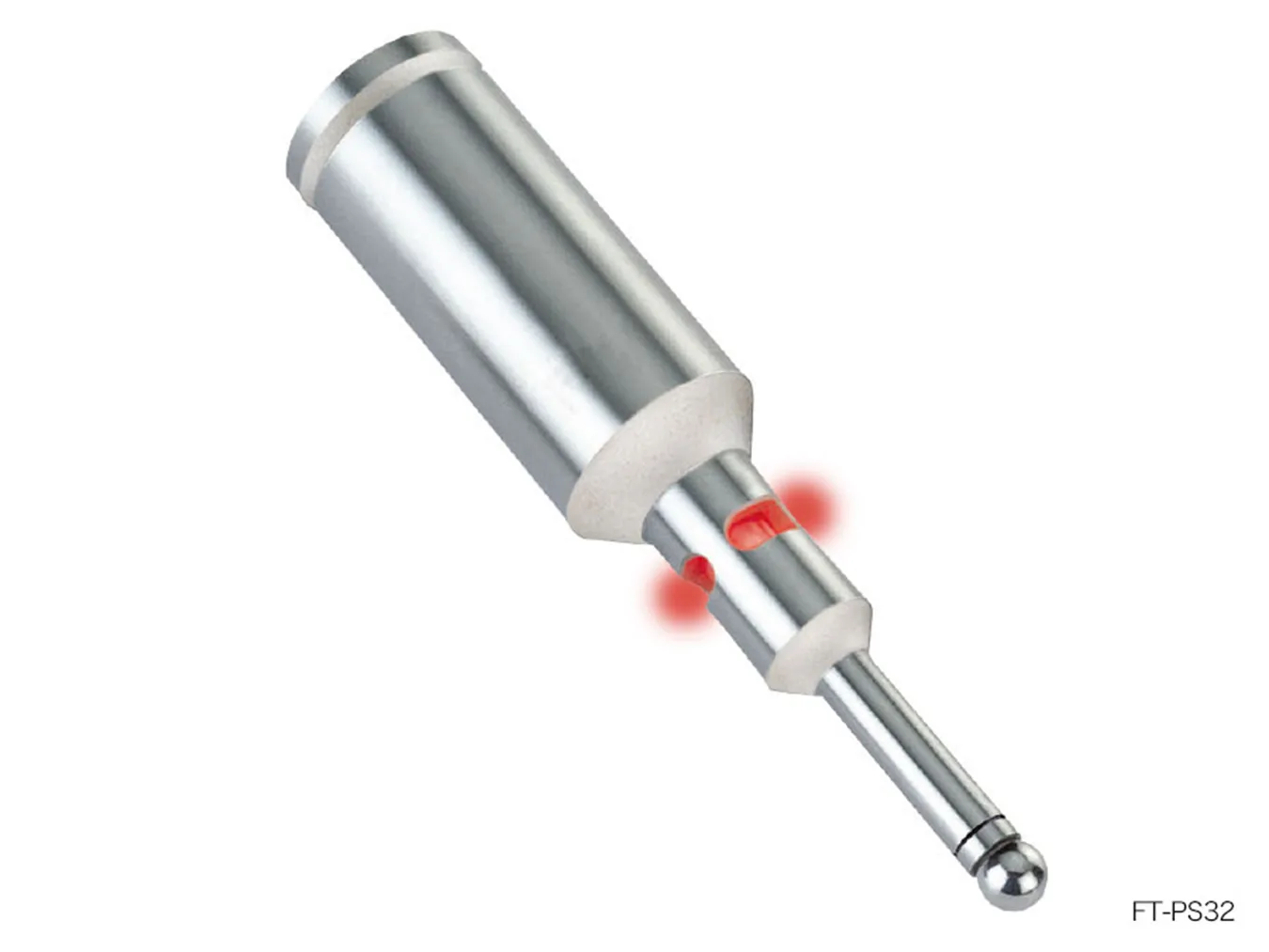

| FT-PS32 | Ø32 | 158 | 75 | Ø10 | LED-illuminated type | 0.70kg |

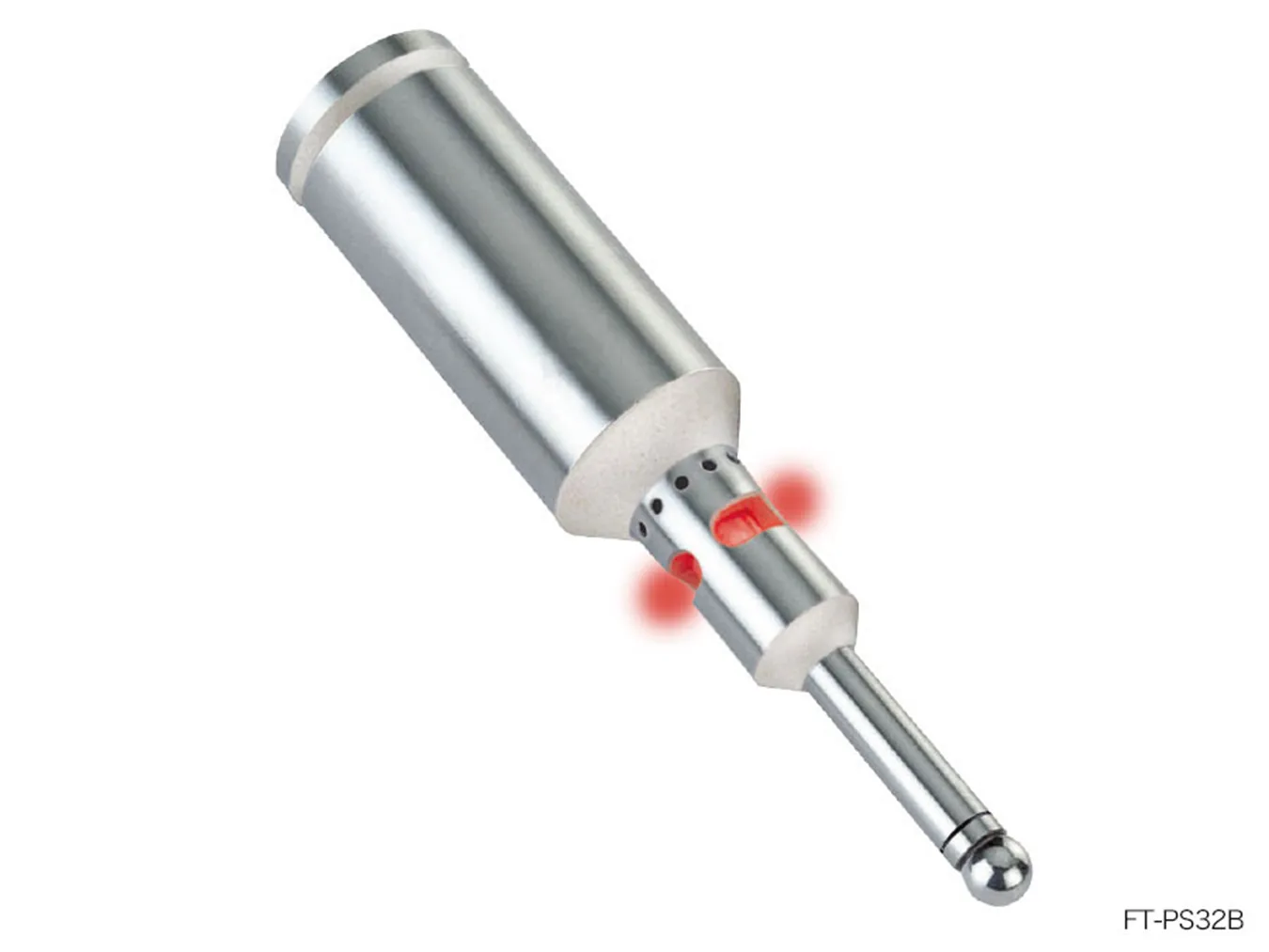

| FT-PS32B | Ø32 | 158 | 75 | Ø10 | LED+buzzer | 0.70kg |
