Concentricity Measuring Instrument
Product NO: FT-PGC
Price range: ¥219,000 through ¥230,000
Specification
Features: An ideal concentricity gauge for measuring concentricity, roundness, and runout accuracy. Three different roller types are available to accommodate various workpiece shapes.

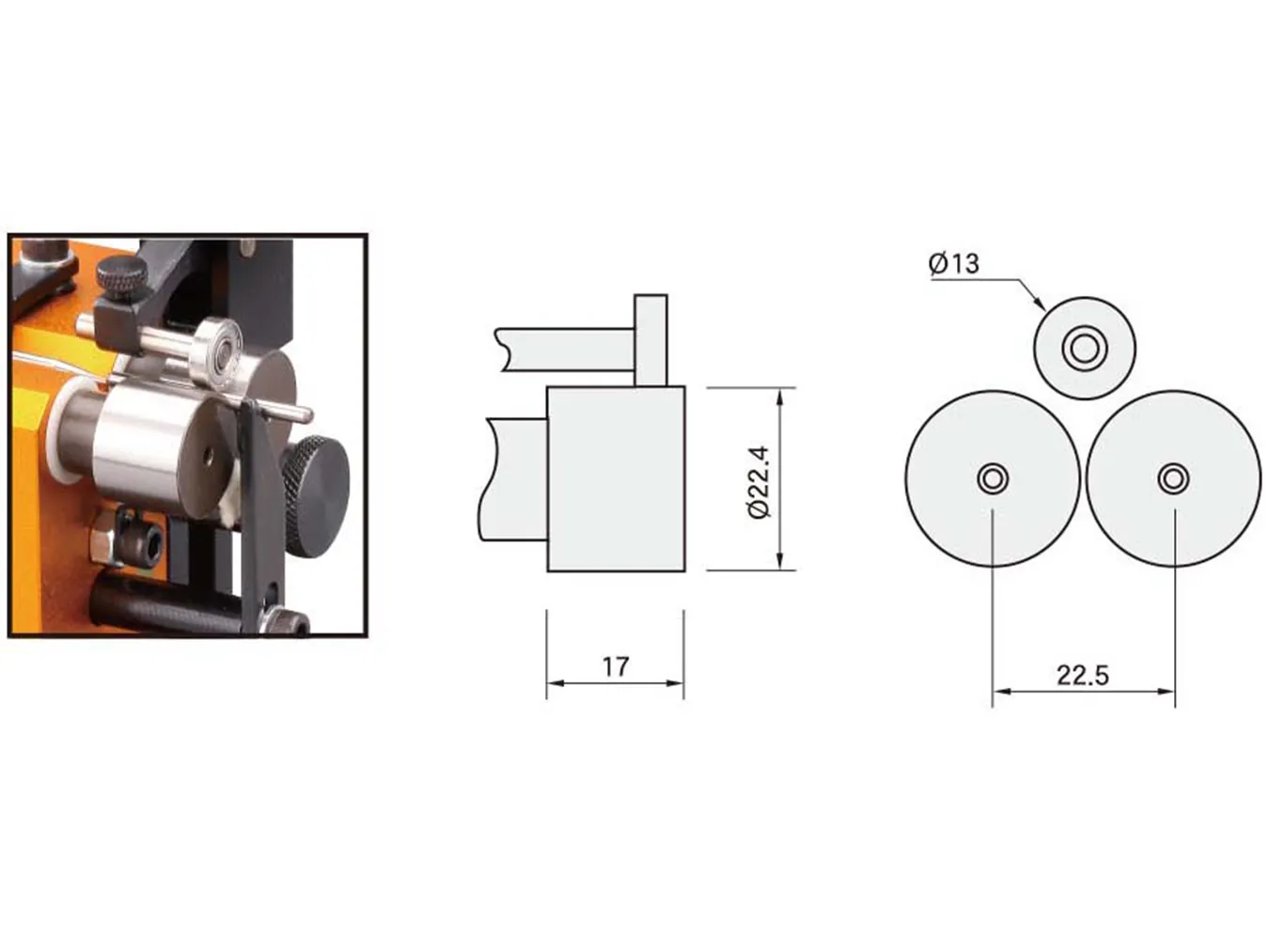

●FT-PGCA: Flat roller type. The larger contact area provides more stable workpiece support and holding.

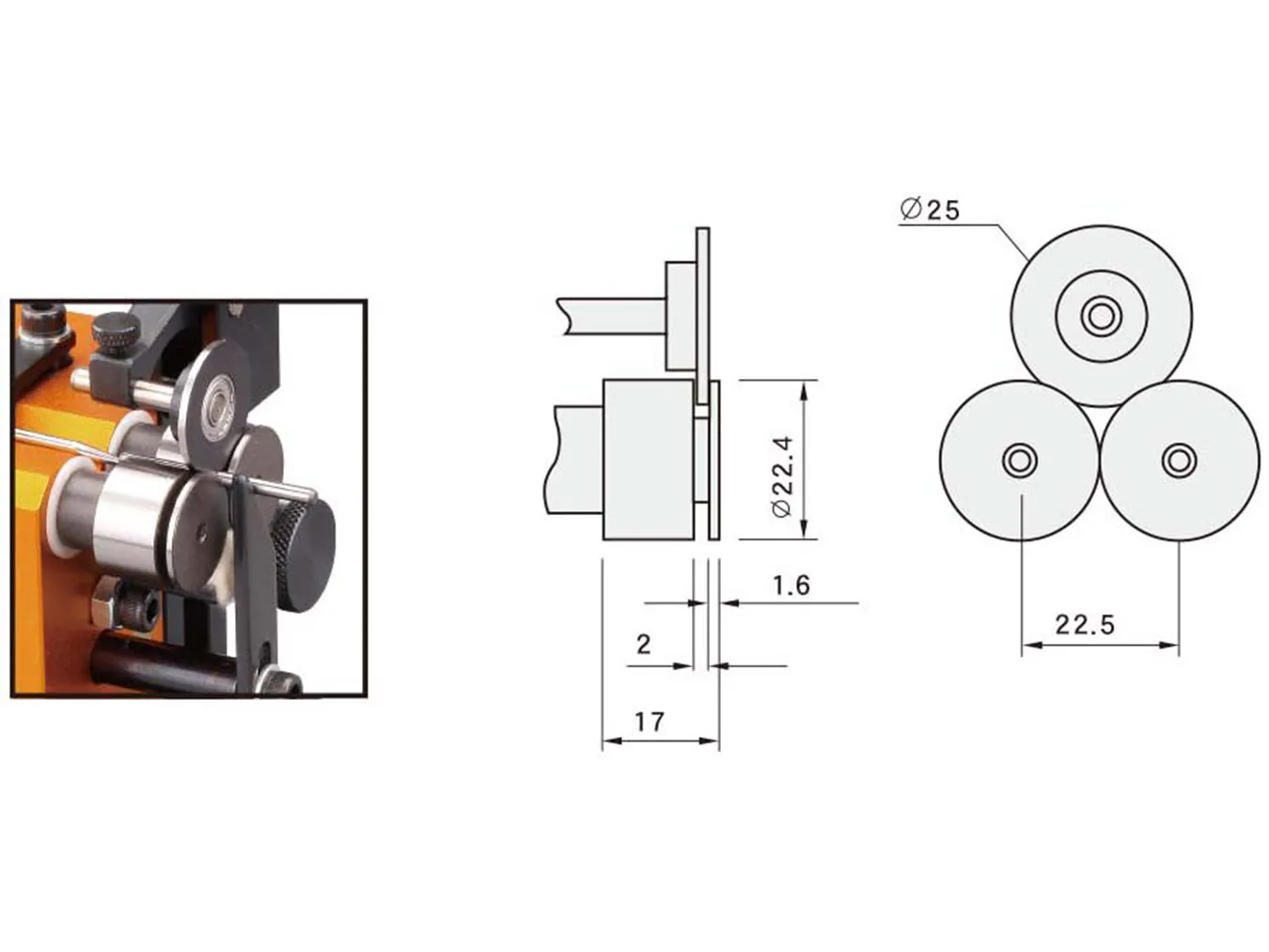

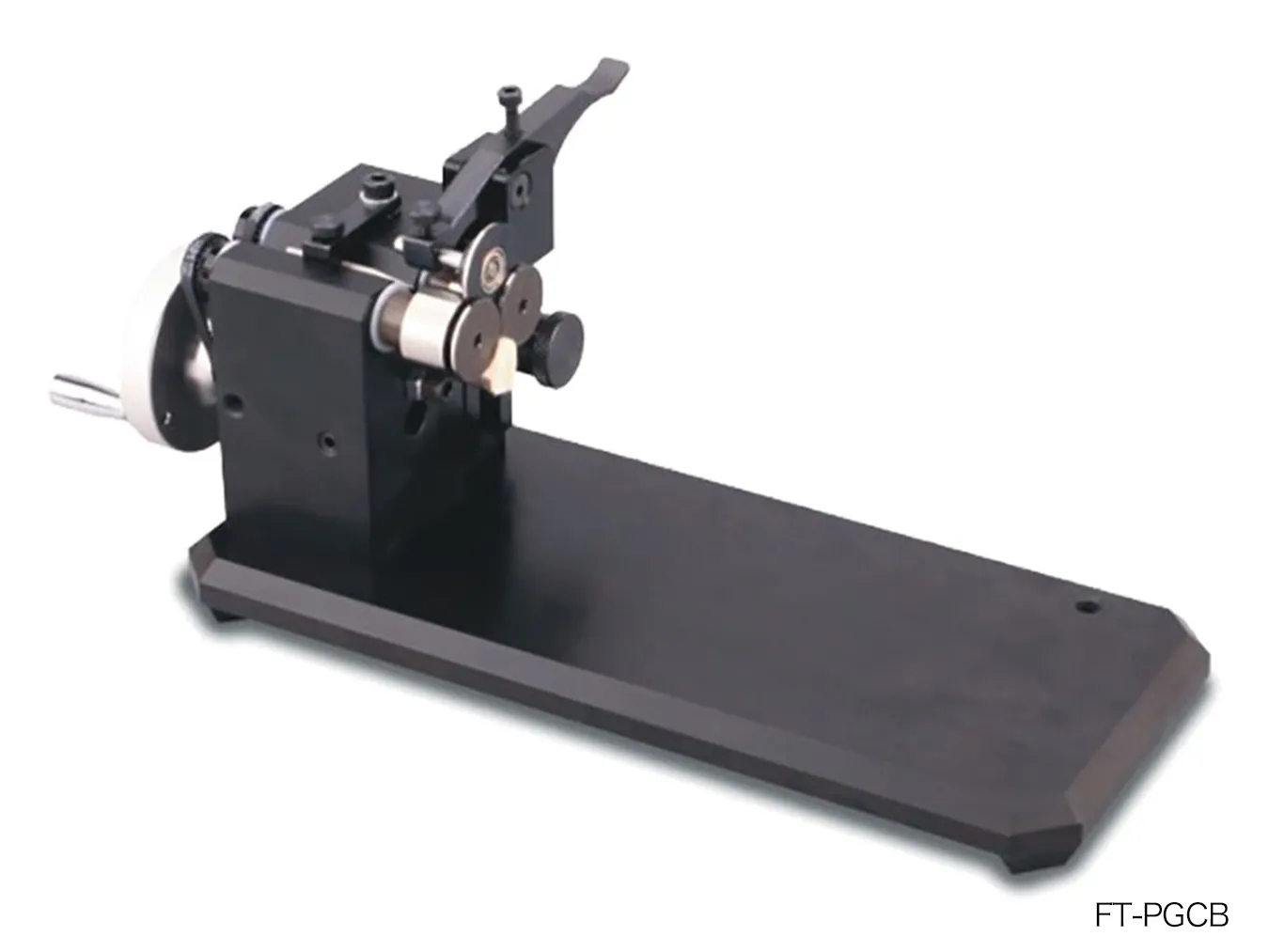

●FT-PGCB: Grooved roller type. Capable of holding workpieces from Ø1.5 mm, making it ideal for small-diameter workpieces.

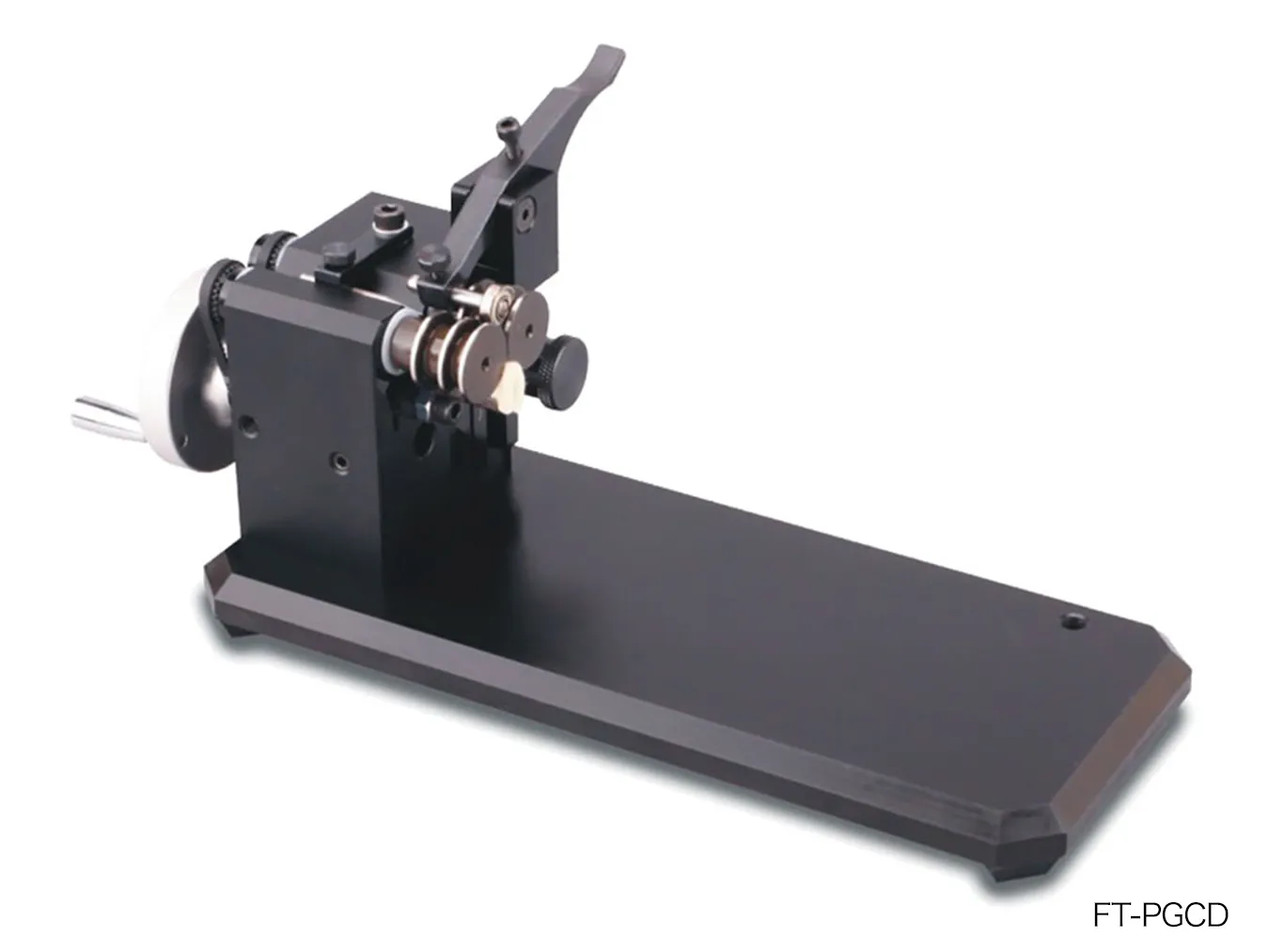

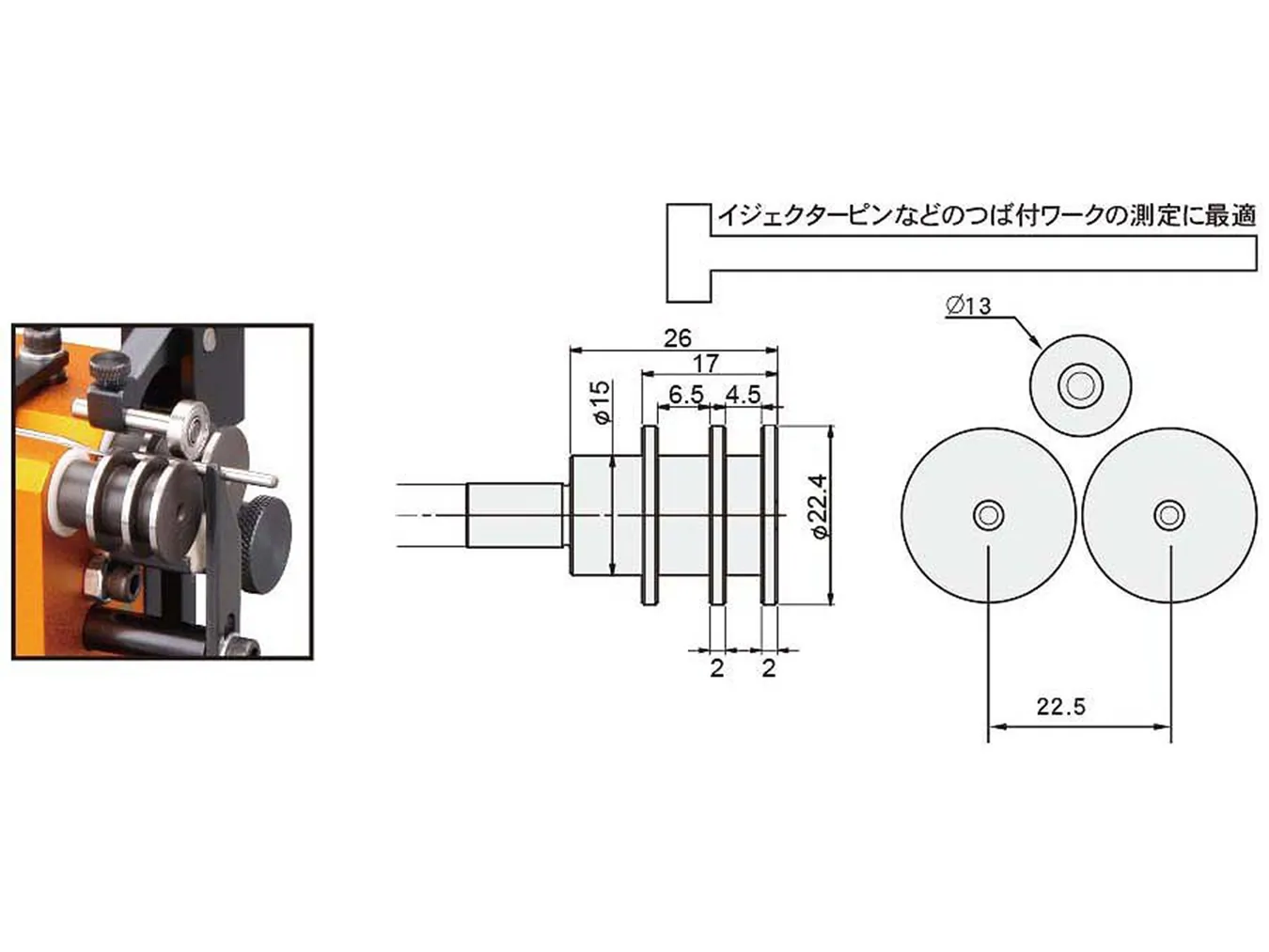

●FT-PGCD: Slit roller type. Designed for securely holding small-diameter workpieces, ejector pins, and similar components.
Product Specifications (Variations)
unit：mm| Product NO | Roller type | Gripping range | Gripping length | accuracy | Base size |
|---|---|---|---|---|---|
| FT-PGCA | Flat roller | Ø3mm-Ø25mm | Within 100 mm | Up to 0.002 mm | 267x114x125mm |
| FT-PGCB | Grooved roller | Ø1.5mm-Ø25mm | Within 100 mm | Up to 0.002 mm | 267x114x125mm |
| FT-PGCD | Slit roller | Ø1.5mm-Ø25mm | Within 100 mm | Up to 0.002 mm | 267x114x125mm |
