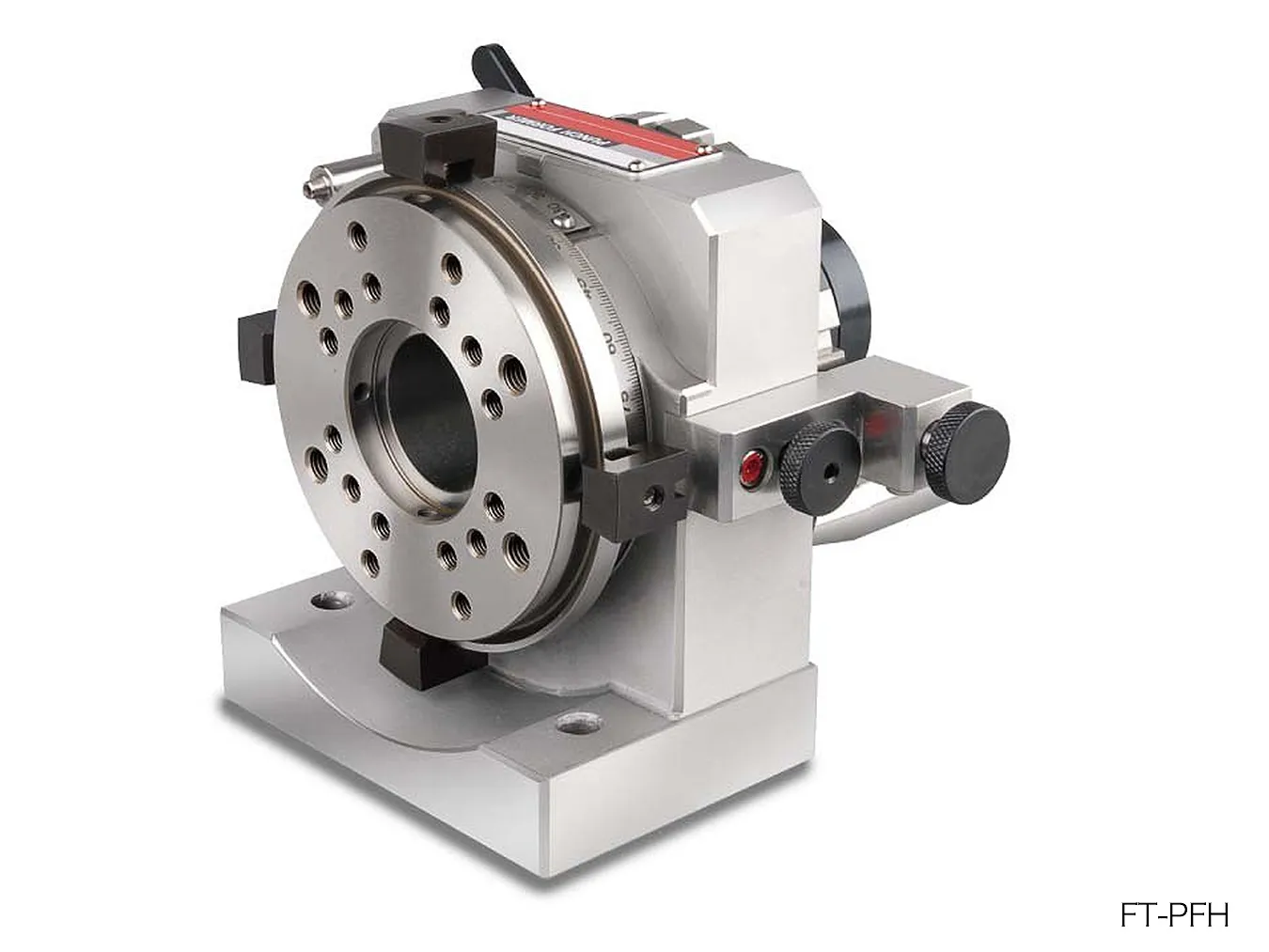

Fine-tuning Type Punch Former

Product NO: FT-PF350

¥490,000

This is a back-order item

Specification

●The FT-PF350 features a fine-adjustment mechanism, providing strong gripping force and excellent durability.
●The through-hole center bore accommodates long punches and ejector pins.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

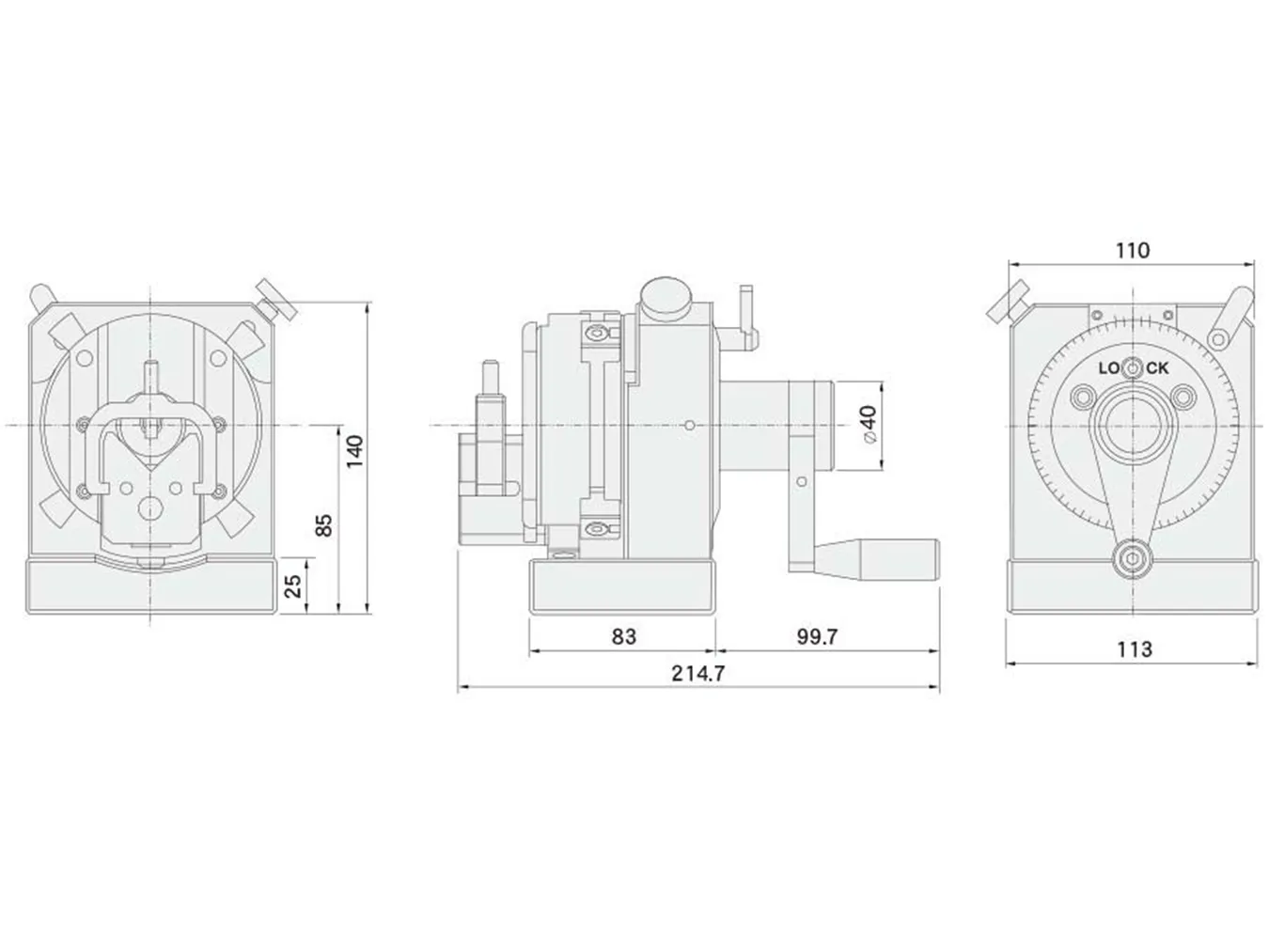

unit：mm

Product NOFT-PF350
Center height85±0.5ｍｍ
Indexer tooth q'ty & accuracy24、15°±10”
Through hole diametersØ30mm
Clamping dia. range of V-blockØ3-30ｍｍ
Trave| of V-block25mm
Clamping accuracy (50mm)0.005mm
weight（kg）8.2kg
