Multi Work stopper
Product NO: FT-MWS170
¥28,000
35 in stock (can be backordered)
Specification
●A workpiece positioning stop that can be adjusted in virtually any direction.
●Enables fast and reliable setup of workpieces with identical shapes, reducing setup time.
●The stepped stop pin allows positioning and setup using grooves on the workpiece.

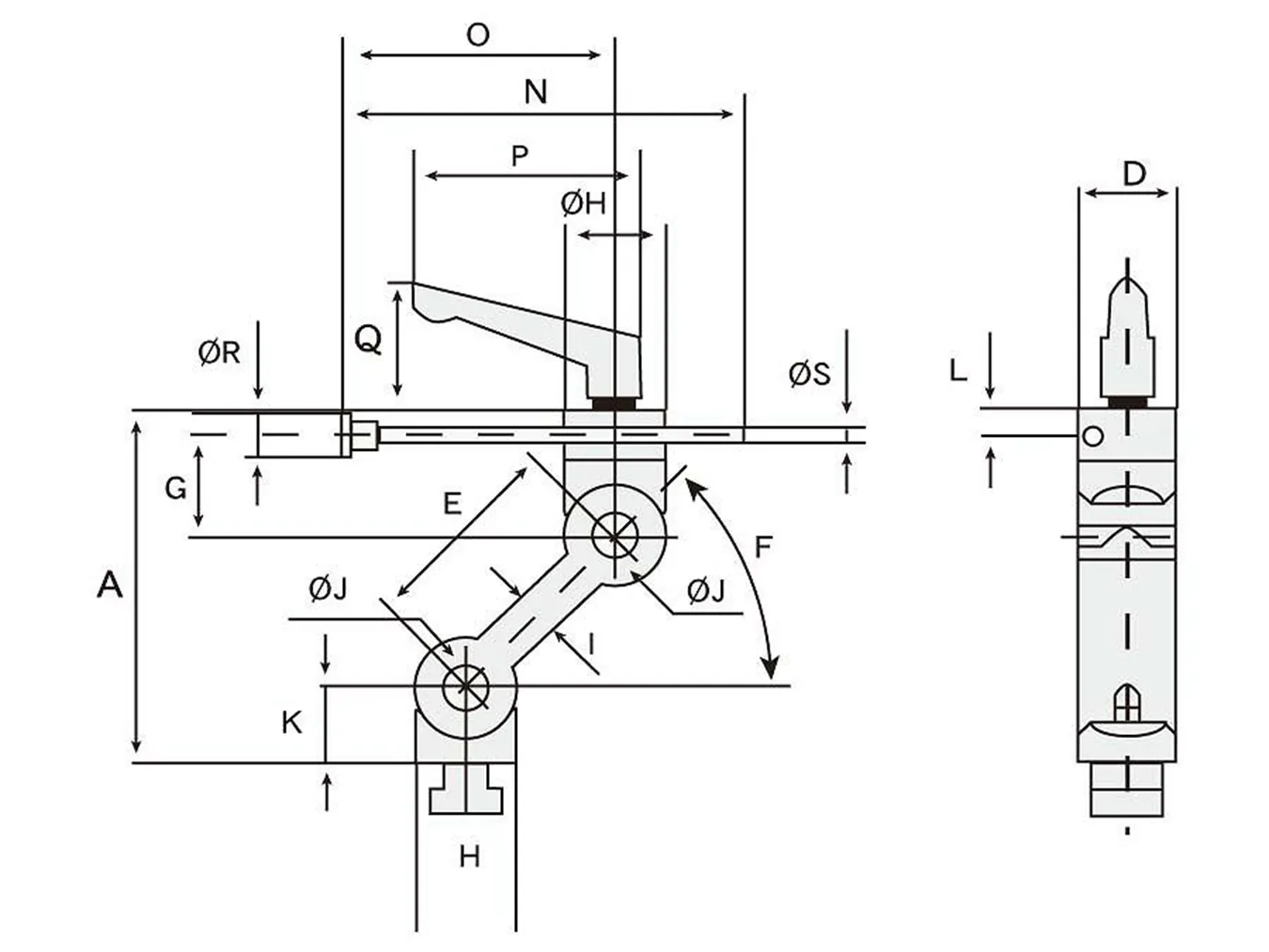

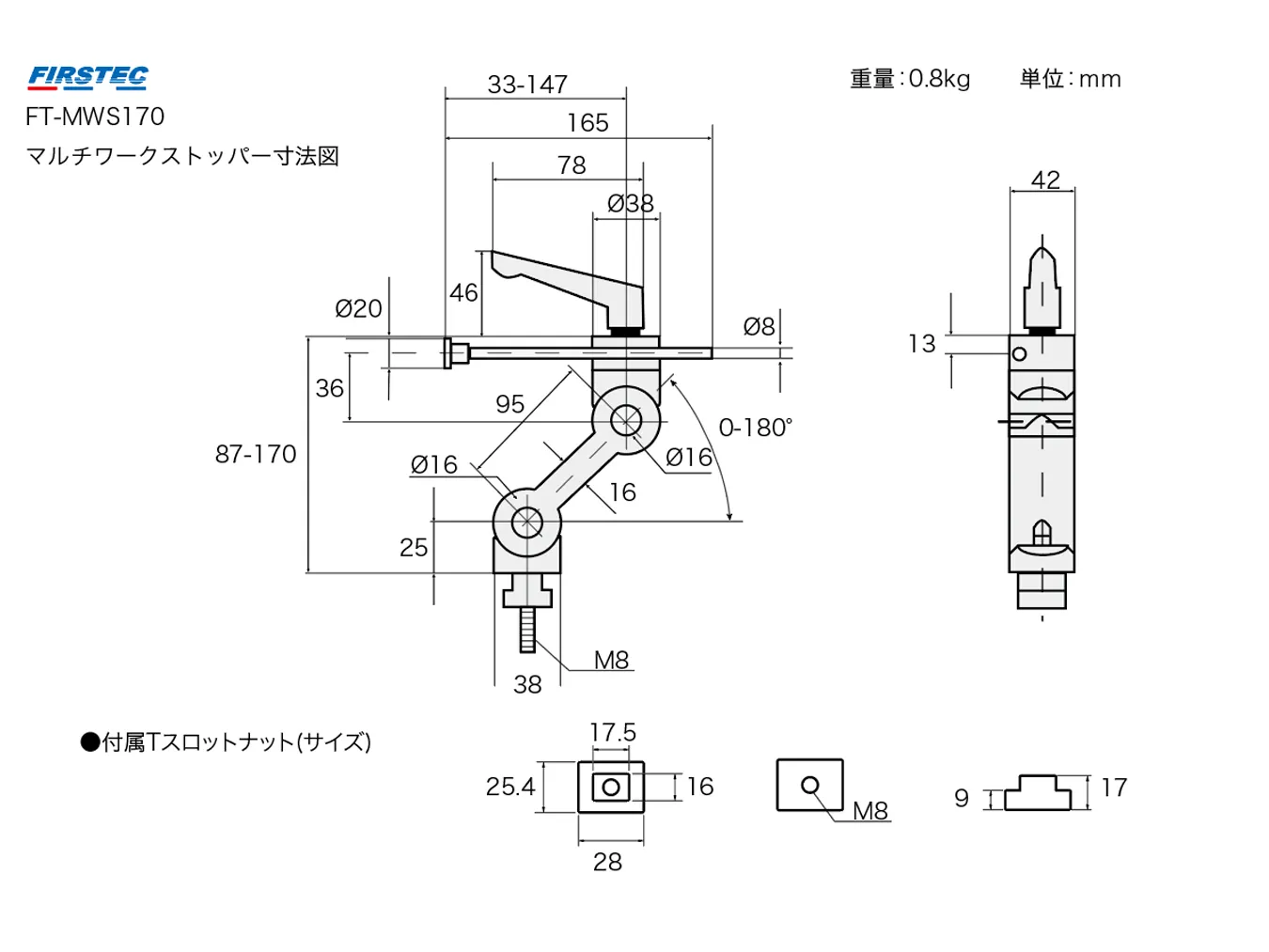

unit：mm
| Product NO | FT-MWS170 |
|---|---|
| A | 87-170 |
| D | 42 |
| E | 95 |
| F | 0-180° |
| G | 36 |
| H | 38 |
| I | 16 |
| J | 16 |
| K | 25 |
| L | 13 |
| N | 165 |
| O | 33-147 |
| P | 78 |
| Q | 46 |
| R | 20 |
| S | 8 |
| weight（kg） | 0.8kg |
