Tool Holder Tightening Fixture
Product NO: FT-LDBT-A
Price range: ¥41,000 through ¥60,000
Specification
●Heavy-Duty Base: Stable cast-iron or steel base ensures vibration-free operation during tool holder tightening.
●Quick Setup: Easy-to-use mounting system allows fast setup on a workbench or tool cart.
●Protective Design: Prevents damage to tool holder taper during tightening and loosening operations.
●Precise Alignment: Designed to securely hold BT tool holders (e.g., BT40, BT50) for safe and accurate clamping during pull stud installation or torque tightening.
Product Specifications (Variations)

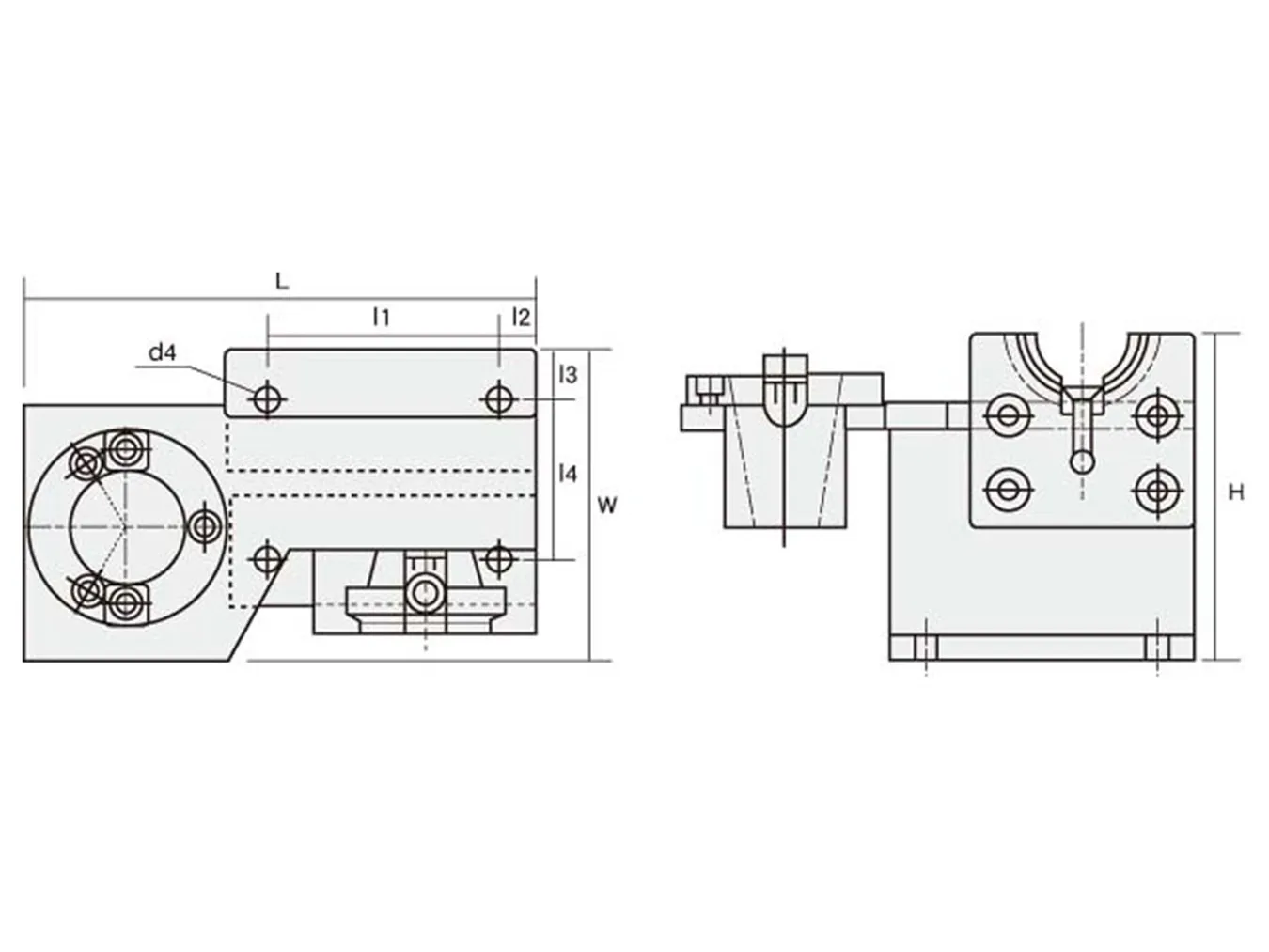

unit：mm| Product NO | Applicable | L | l1 | l2 | l3 | l4 | H | W | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|
| FT-LDBT30A | BT30 | 210 | 95 | 10 | 15 | 67 | 130 | 100 | 3.6kg |
| FT-LDBT40A | BT40 | 210 | 95 | 10 | 15 | 67 | 130 | 100 | 3.7kg |
| FT-LDBT50A | BT50 | 275 | 113 | 20 | 24 | 105 | 200 | 150 | 11.0kg |
