Firstec E3R Magnetic Chuck
¥322,000
This is a back-order item
Specification
Material：SUS440
Hardness：HRC45°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Magnetic pole pitch：0.5×1.5
Inspection Certificate: Included
Storage Case: Included
●An EROWA centering plate or a System-3R Macro base holder can be mounted to the underside of the vise.
●Compatible with EROWA Centering Plate 50 (ER-009214) and System-3R Macro Base Holder (3R-651.7E-P).

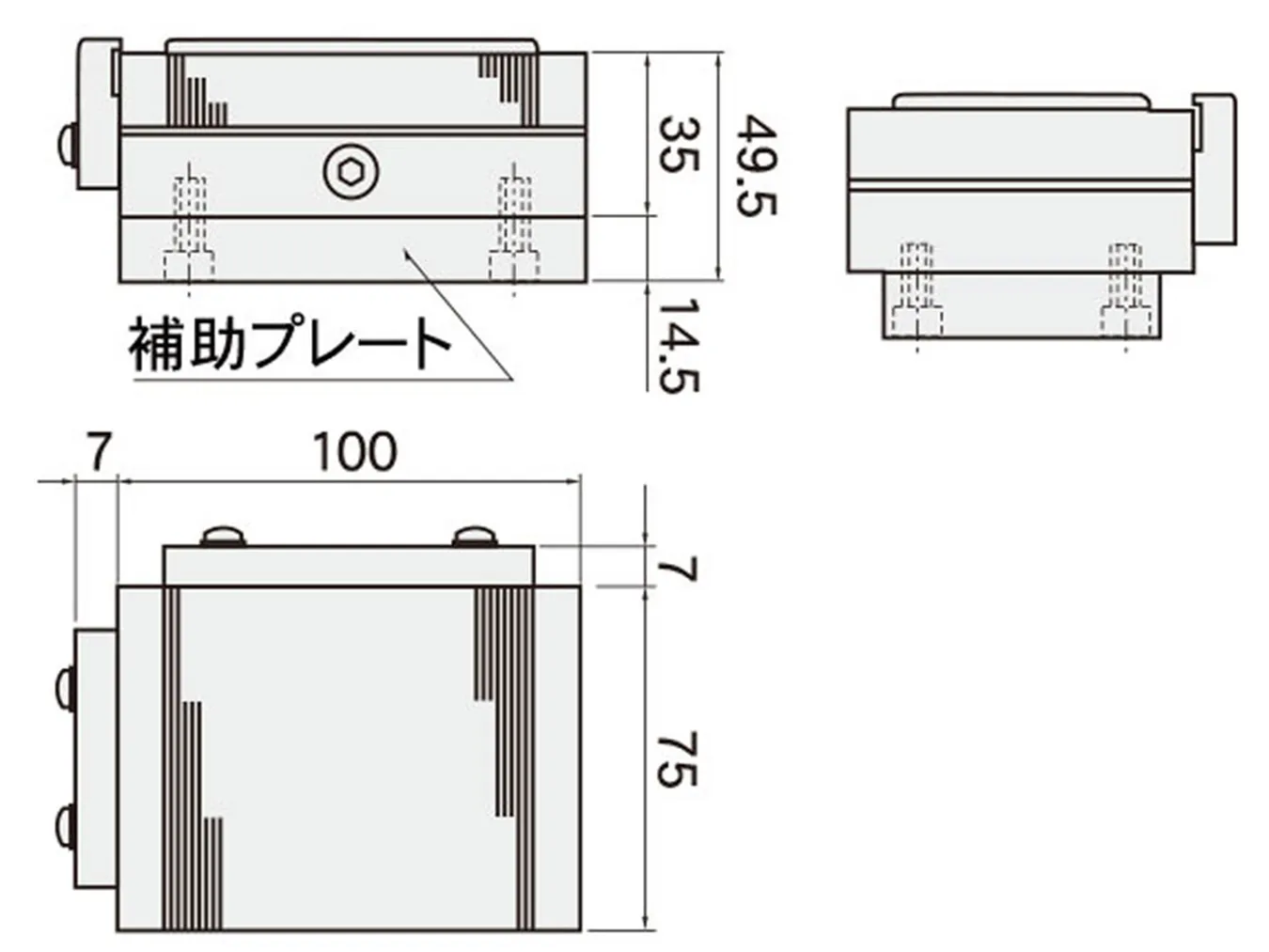

unit：mm
| Product NO | FT-EMC75 |
|---|---|
| weight（kg） | 3.1 |
Product Features
Seamless System Integration: FIRSTEC precision vices and magnetic chucks are fully compatible with System-3R and EROWA systems. By installing System-3R Macro Base Holders or EROWA Centering Plates, our products can be easily integrated into your automated System-3R or EROWA production lines.
・The FIRSTEC E3R System can be used by combining EROWA centering plates, chucking spigots, and chucks, or System-3R Macro Base Holders, drawbars, and chucks.
・EROWA centering plates, chucking spigots, chucks, as well as System-3R Macro Base Holders, drawbars, and chucks are not included. These components must be purchased separately by the customer.
・Alignment and setup of the vice and plate are available for all products (additional fees apply). Please contact us for details.
