Leveling Wire EDM Vice

Product NO: EWCE150

Quote upon request

This is a back-order item

Specification

Features one movable jaw and one fixed jaw, precision-ground for excellent corrosion resistance.
Allows lateral external clamping of workpieces ranging from 0 to 150 mm.
Clamping range：0～150mm
Maximum load capacity：10kg
Mounted on a fixed base, with position adjustment in the ZX and ZY planes provided by six adjustment screws.
Designed for use with a horizontal base, allowing positional adjustment in the ZX plane, ZY plane, and C-axis direction via adjustment screws.
Maximum tightening torque：10Nm

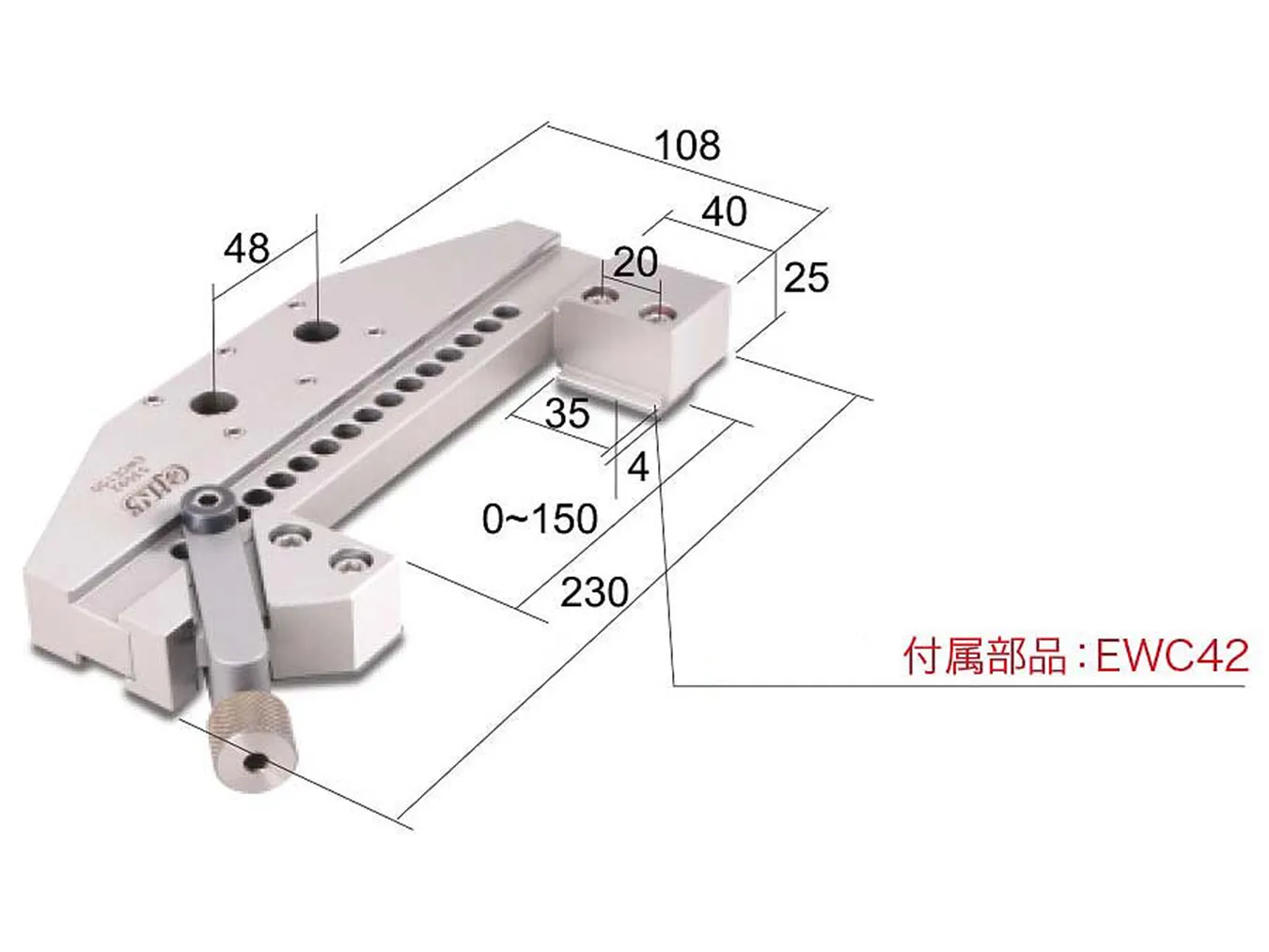

unit：mm

Product NOEWCE150
weight（kg）2.5
