Leveling Clamp
Product NO: EWCC100
Quote upon request
This is a back-order item
Specification
Clamping unit with an integrated clamp, designed to be attached to one side of the workpiece.
Downward clamping from above; workpiece bottom height: Z = +5 mm.
Compatible sizes：120×120×70mm
Maximum load：5kg
Mounted on a fixed base, with position adjustment in the ZX and ZY planes provided by six adjustment screws.
Mounted on a horizontal base, with adjustment available in the ZX plane, ZY plane, and C-axis direction.
Adjustment is performed using the adjustment screws located on the horizontal base.

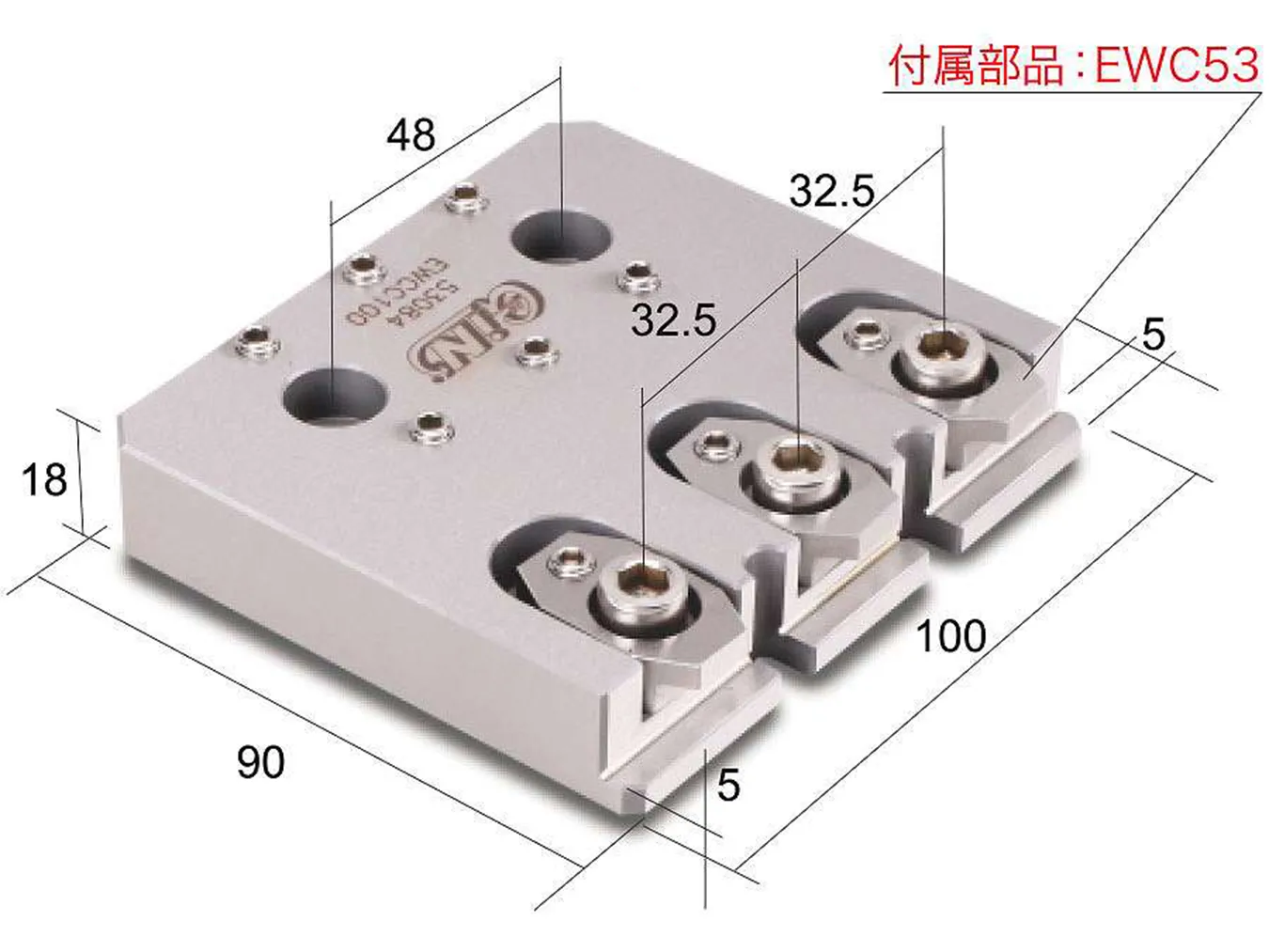

unit：mm
| Product NO | EWCC100 |
|---|---|
| weight（kg） | 0.9 |
