Vertical Lifting Magnets
Price range: ¥356,000 through ¥724,000
Specification
A Permanent Lifting Magnet alone cannot be used to lift and transport steel plates in a vertical position. However, when used with the ELM-V Series Vertical Lifting and Handling System, steel plates can be held by the Permanent Lifting Magnet and transported vertically.
Permanent Lifting Magnets are included with the unit.The supplied Permanent Lifting Magnets are permanently integrated and cannot be removed.This product is not intended for horizontal lifting applications.
Product Specifications (Variations)

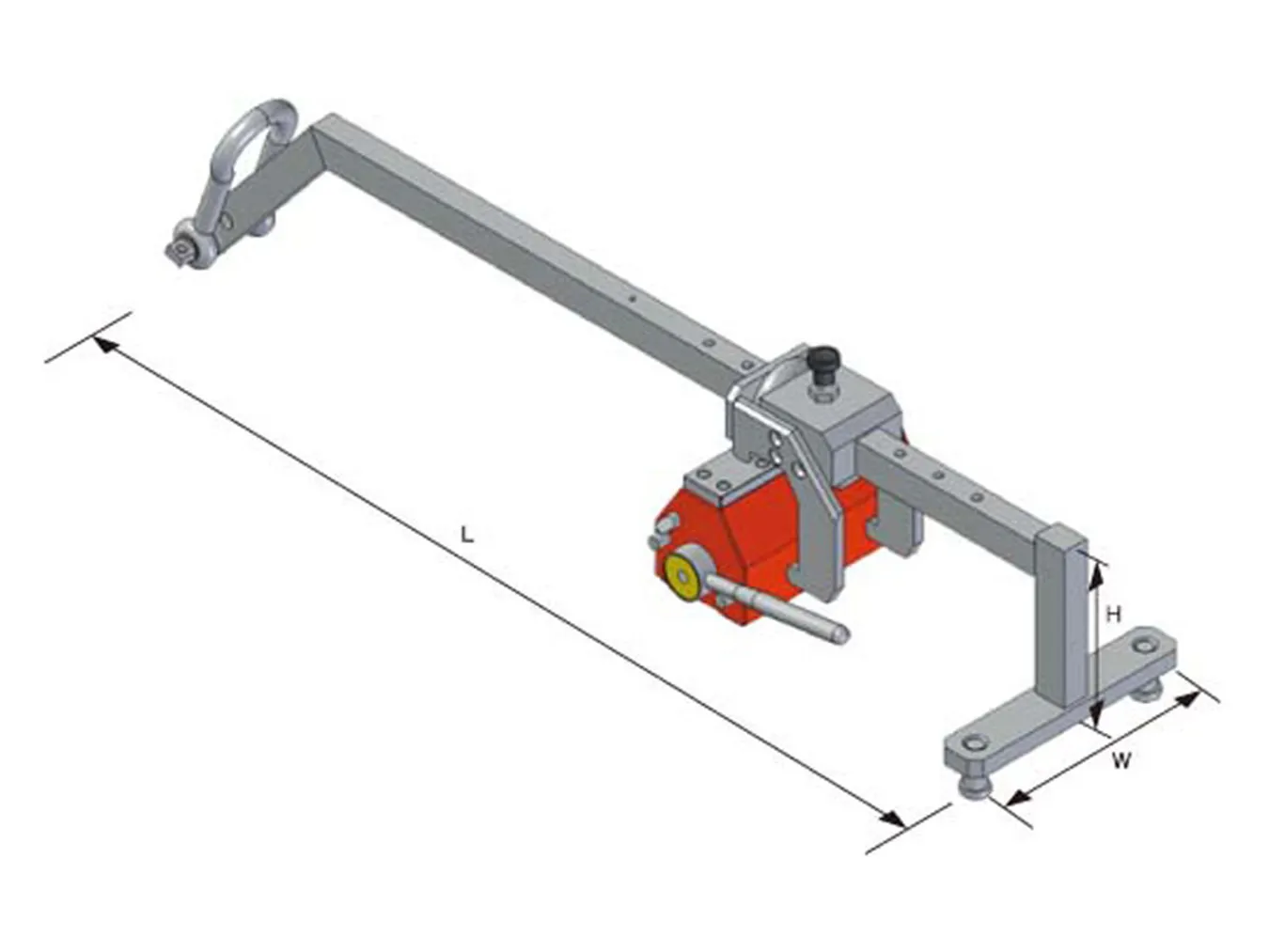

unit：mm| Product NO | Capacity（kg） | Plate length（mm） (min. / max.) | Plate width（mm） (min. / max.) | Plate thickness（mm） (min. / max.) | L | W | H | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| ELM-300V | 300 | 200/1500 | 300/800 | 6/150 | 953 | 216 | 254 | 26 |
| ELM-600V | 600 | 300/1800 | 300/1000 | 8/250 | 1156 | 272 | 254 | 39 |
| ELM-1000V | 1000 | 300/2000 | 300/1000 | 10/300 | 1207 | 343 | 305 | 58 |
Product Features
Powerful magnetic force achieved through our proprietary yoke design.
Figure 1 (OFF Position): The two internal magnets attract each other, keeping the magnetic force completely inside. No external magnetism is generated.
Figure 2 (ON Position): The internal magnets repel each other, driving the magnetic field lines through the workpiece from the N to S pole to clamp it securely.
Heavy-handle safety design that alerts the operator when full magnetic force is not engaged.
Since this model features a permanent magnet specification, the generated magnetic flux density remains constant. Consequently, when the lifted load is thin (as shown in Figure A), the generated magnetic flux density can only partially penetrate the load, preventing the device from exerting 100% of its full magnetic capacity.
As a result, the holding force decreases. This simultaneously causes the handle operation to become heavier, effectively alerting the operator that the full magnetic force has not been successfully engaged.
Precautions for Use
リフティングマグネットの最大吊上能力と必要板厚
| Product NO | Max.lifting capacity | Min. thickness required | Maximum length |
|---|---|---|---|
| ELM-100 | 100 | 15mm | 1.0M |
| ELM-300 | 300 | 25mm | 1.5M |
| ELM-600 | 600 | 30mm | 2.0M |
| ELM-1000 | 1000 | 40mm | 2.5M |
| ELM-2000 | 2000 | 55mm | 3.0M |
| ELM-3000 | 3000 | 60mm | 3.5M |
Round Bar Lifting Conditions
| Product NO | Max.lifting capacity | Min diameter（mm） | Max diameter（mm） | Maximum length（mm） |
|---|---|---|---|---|
| ELM-100 | 50 | 80 | 150 | 1000 |
| ELM-300 | 150 | 100 | 250 | 1500 |
| ELM-600 | 300 | 180 | 350 | 2000 |
| ELM-1000 | 500 | 230 | 450 | 2500 |
| ELM-2000 | 1000 | 260 | 550 | 3000 |
| ELM-3000 | 1500 | 300 | 650 | 3500 |
