Permanent Lifting Magnet
¥299,000
14 in stock (can be backordered)
Specification
●Industry-leading safety factor of 3.5!
●Up to 16.6% greater magnetic force compared with conventional competitor models.
●Proprietary technology enables a more compact design than previous models.
●Weight reduced by up to 54.7% compared with comparable products.
●Magnetic contact surface area reduced by up to 42.8% compared with competing models.

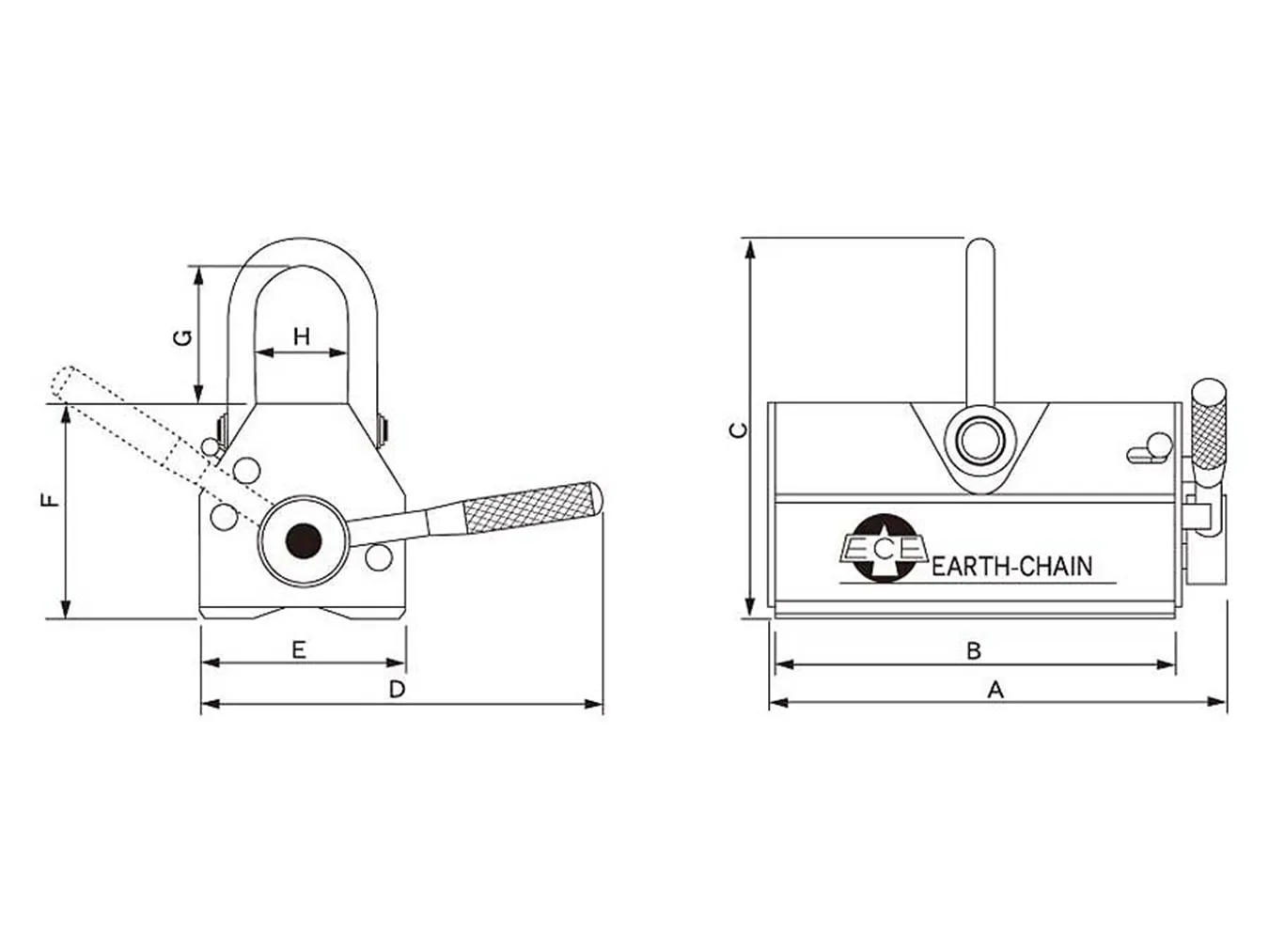

unit：mm
| Product NO | ELM-1000 |
|---|---|
| Max Lifting capacity flat steel | 1000kg |
| Max Lifting capacity Round steel | 500kg |
| Clamping force | 3500kg |
| weight（kg） | 46 |
| A | 294 |
| B | 259 |
| C | 286 |
| D | 377 |
| E | 163 |
| F | 169 |
| G | 97 |
| H | 87 |
Product Features
Powerful magnetic force achieved through our proprietary yoke design.
Figure 1 (OFF Position): The two internal magnets attract each other, keeping the magnetic force completely inside. No external magnetism is generated.
Figure 2 (ON Position): The internal magnets repel each other, driving the magnetic field lines through the workpiece from the N to S pole to clamp it securely.
Heavy-handle safety design that alerts the operator when full magnetic force is not engaged.
Since this model features a permanent magnet specification, the generated magnetic flux density remains constant. Consequently, when the lifted load is thin (as shown in Figure A), the generated magnetic flux density can only partially penetrate the load, preventing the device from exerting 100% of its full magnetic capacity.
As a result, the holding force decreases. This simultaneously causes the handle operation to become heavier, effectively alerting the operator that the full magnetic force has not been successfully engaged.
Precautions for Use
リフティングマグネットの最大吊上能力と必要板厚
| Product NO | Max.lifting capacity | Min. thickness required | Maximum length |
|---|---|---|---|
| ELM-100 | 100 | 15mm | 1.0M |
| ELM-300 | 300 | 25mm | 1.5M |
| ELM-600 | 600 | 30mm | 2.0M |
| ELM-1000 | 1000 | 40mm | 2.5M |
| ELM-2000 | 2000 | 55mm | 3.0M |
| ELM-3000 | 3000 | 60mm | 3.5M |
Round Bar Lifting Conditions
| Product NO | Max.lifting capacity | Min diameter（mm） | Max diameter（mm） | Maximum length（mm） |
|---|---|---|---|---|
| ELM-100 | 50 | 80 | 150 | 1000 |
| ELM-300 | 150 | 100 | 250 | 1500 |
| ELM-600 | 300 | 180 | 350 | 2000 |
| ELM-1000 | 500 | 230 | 450 | 2500 |
| ELM-2000 | 1000 | 260 | 550 | 3000 |
| ELM-3000 | 1500 | 300 | 650 | 3500 |
Video
