Medium-Sized Split Point Drill Resharpening Machine
¥330,000
34 in stock (can be backordered)
Specification
●Suitable for drill diameters from 3.0 mm to 20.0 mm, providing excellent versatility.
●Offers a wider sharpening range than compact drill sharpeners.
●Backed by a one-year warranty.
●Point angle range: 85°–140°.
●Capable of sharpening both HSS drills and carbide drills by changing the grinding wheel.
unit：mm
| Product NO | EDG-320N |
|---|---|
| Polishable size | Ø3.0mm～Ø20.0mm |
| Drill Point Angle | 85°～140° |
| Electroplated polishing wheel（STD ACC） | EDG-320N-1C CBN#200（For high-speed steel drills） |
| ER Collet（STD ACC） | 3.0/4.0/5.0/6.0/7.0/8.0/9.0/10.0/11.0/12.0/13.0/14.0/15.0/16.0/17.0/18.0/19.0/20.0mm |
| Power | AC100V（single phase） |
| size | L175×W385×H210mm |
| weight（kg） | 19 |
| Sold separately | EDG-320N-2C/EDG-320N-3C/EDG-320N-1D/EDG-320N-2D/EDG-320N-3D |
Product Features
Professional-Quality Regrinding
Restore worn drills to like-new condition with X-thinning, conical grinding, and secondary clearance angle grinding.

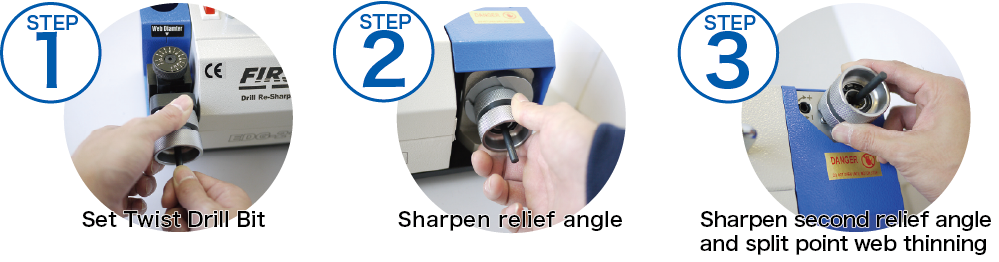

Simple 3-Step Operation
Simple and Effortless Operation for Beginners and Experts Alike

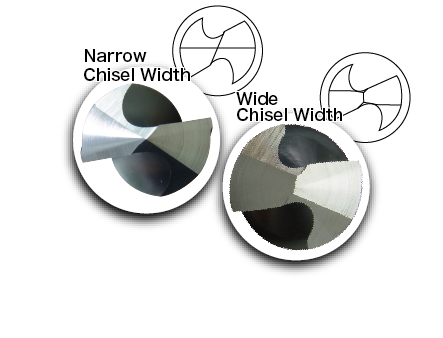

Adjustable Chisel Edge Width
Adjustable chisel edge width through height adjustment of the secondary clearance grinding unit.
※ The SDG-213 is not equipped with this feature.
Proprietary Secondary Clearance Grinding Unit
The secondary relief angle is ground using the flat surface of the grinding wheel. This method also produces an X-thinning geometry.
Adjustable Drill Point Angle
The drill point angle can be adjusted from 85° to 140° using the supplied hex wrench.
※ For the SDG-213, the adjustable range is 90° to 135°.
Bearing-Integrated Design
All collet holders are equipped with built-in sealed bearings. This helps prevent collet wear and minimizes drill runout for improved drilling accuracy.
