Air-Cooled Cutting Machine (with Air Supply for Cooling)
¥160,000
5 in stock (can be backordered)
Specification
●Equipped with an air-cooling supply system.
●Allows easy cutting of carbide drills and end mills. By installing an optional CBN wheel, HSS (high-speed steel) tools can also be cut.
●Typical cutting time: Approximately 30 seconds to 1 minute for a Ø10 mm carbide end mill. (Cutting time may increase depending on the supplied airflow rate.)
●Although this cutting machine is powered by an electric motor, compressed air is required for cooling during operation.
unit：mm
| Product NO | ECO-316 |
|---|---|
| Cutting Capacity | Ø3.0mm～Ø16.0mm |
| Electroplated polishing wheel（STD ACC） | ECO-316-1D SDC#100（for Carbide） |
| Power | AC100V（single phase） |
| size | L175×W300×H160mm |
| weight（kg） | 13.5 |
| Sold separately | ECO-316-1C CBN＃100（for High-speed steel） |
Product Features

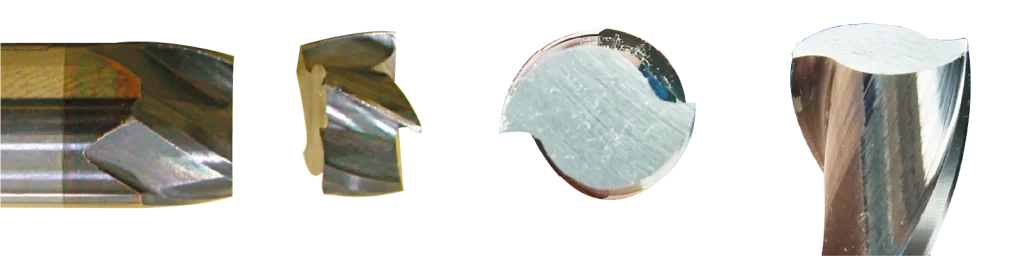

End mill after cutting
Cutting time (approximate)
Approx. 30 seconds to 1 minute with a ø10 carbide end mill.
※Cutting time may be longer depending on the air flow rate.

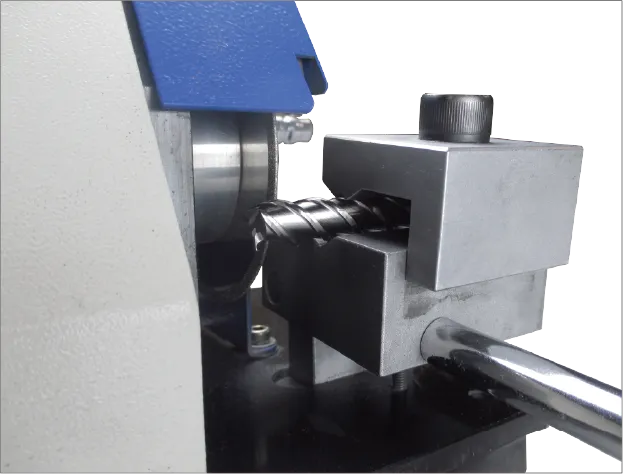

Enlarged view of the clamping section
Place the workpiece into the clamping area shown in the photo, and tighten it with the bolt.

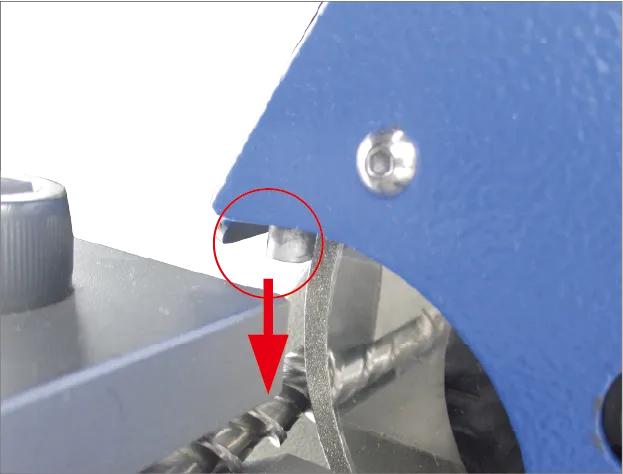

Enlarged view of air or cooling water discharge outlet
Compressed air or cooling water is discharged from the circled area toward the cutting wheel.

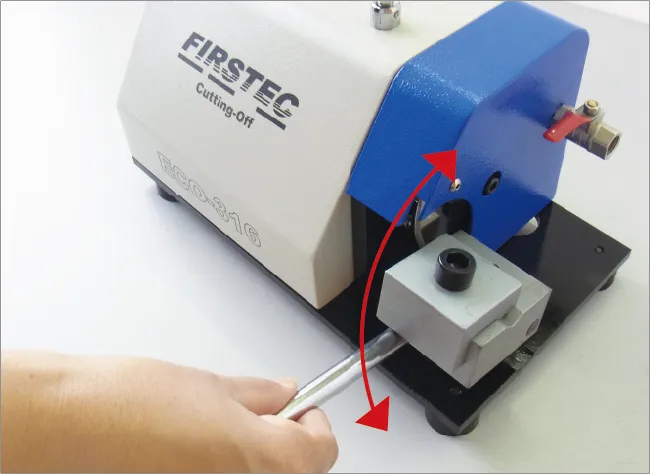

How to use
After clamping the workpiece, open the air cock (oil valve) to discharge compressed air (cooling water) from the nozzle. Then, turn on the motor switch and lift the handle to cut the workpiece.
