Magnetic Clamping Block
Price range: ¥160,000 through ¥390,000

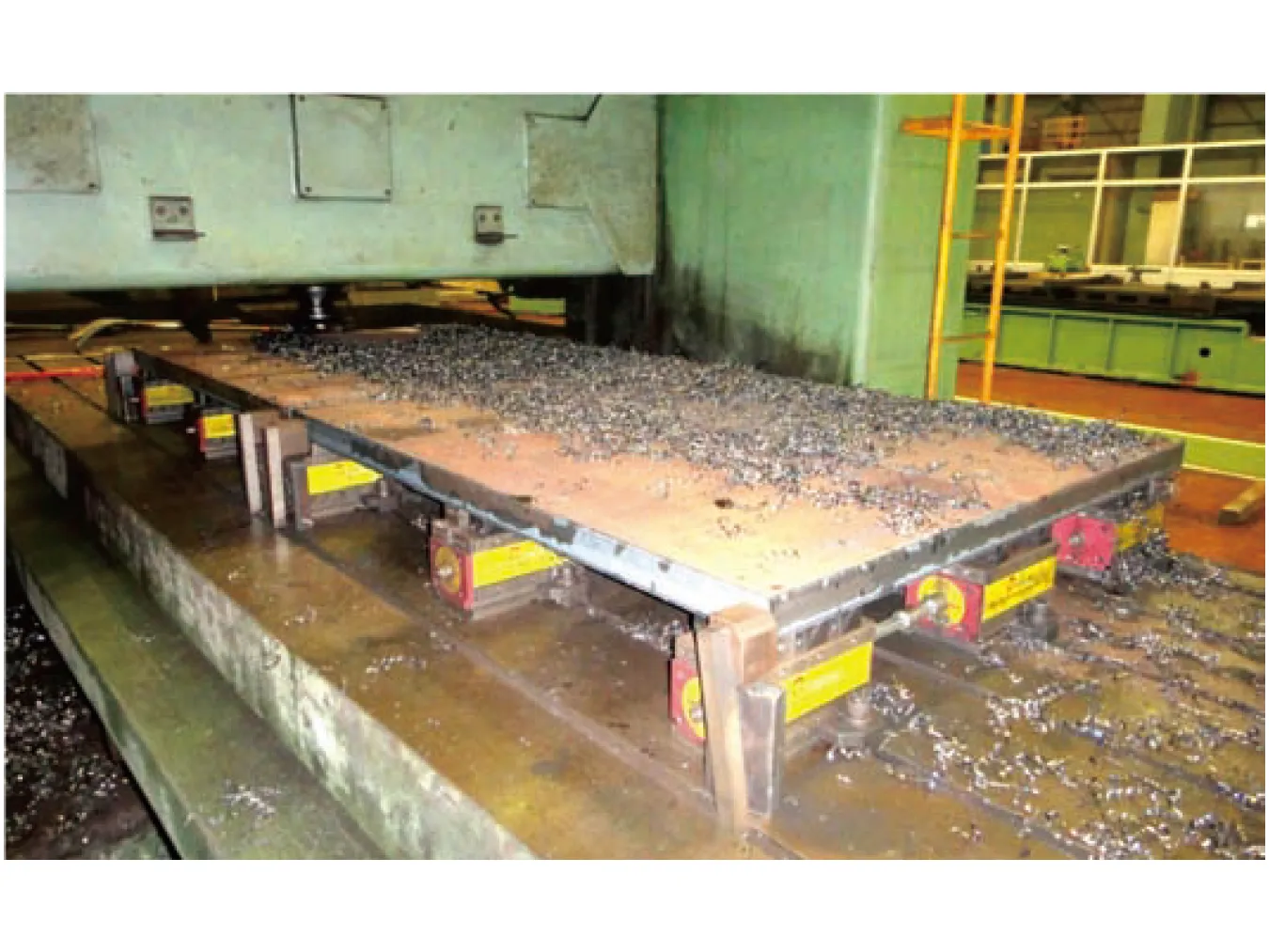

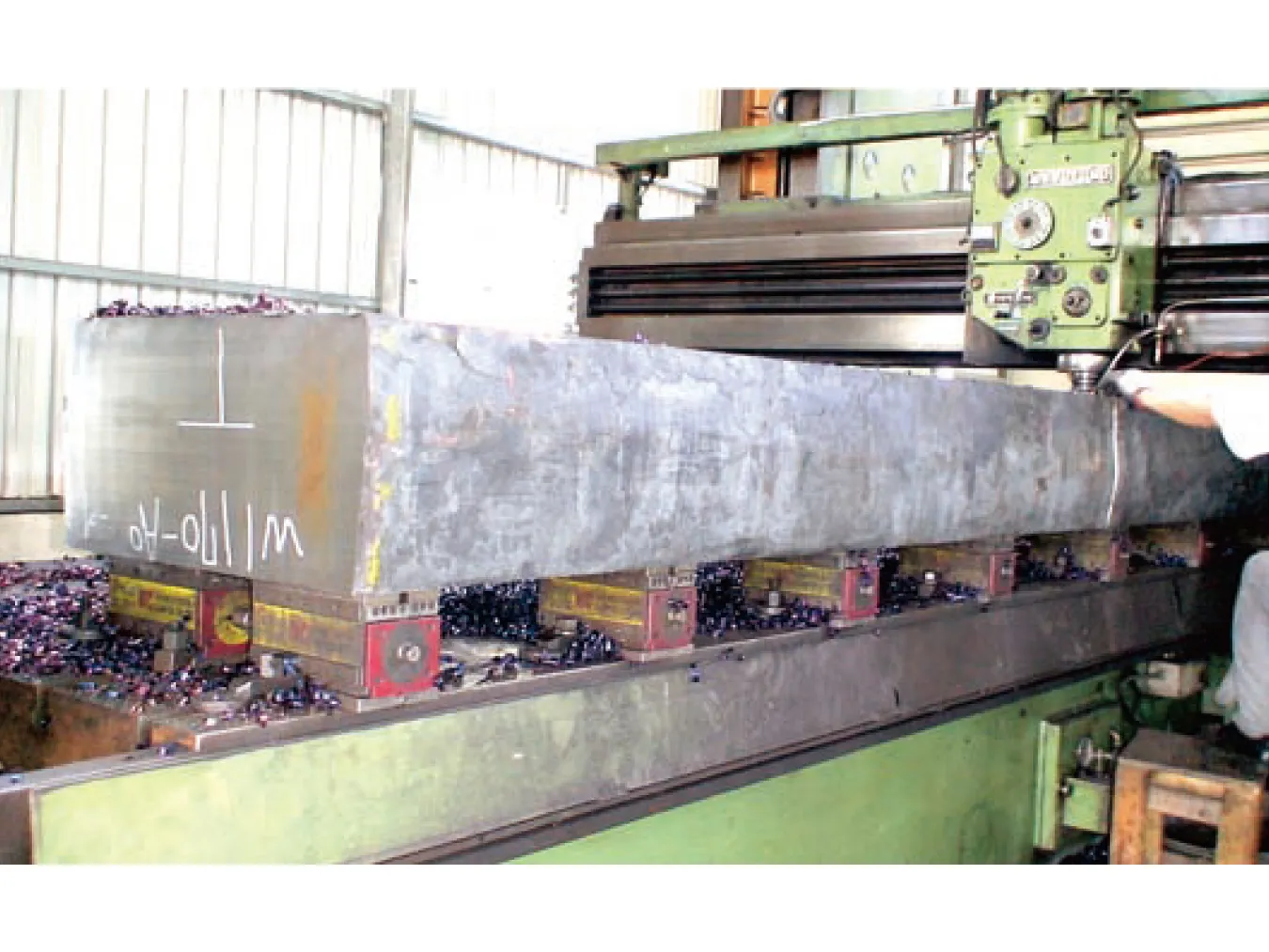

Always place the workpiece so that it bridges across both the S (South) and N (North) poles.

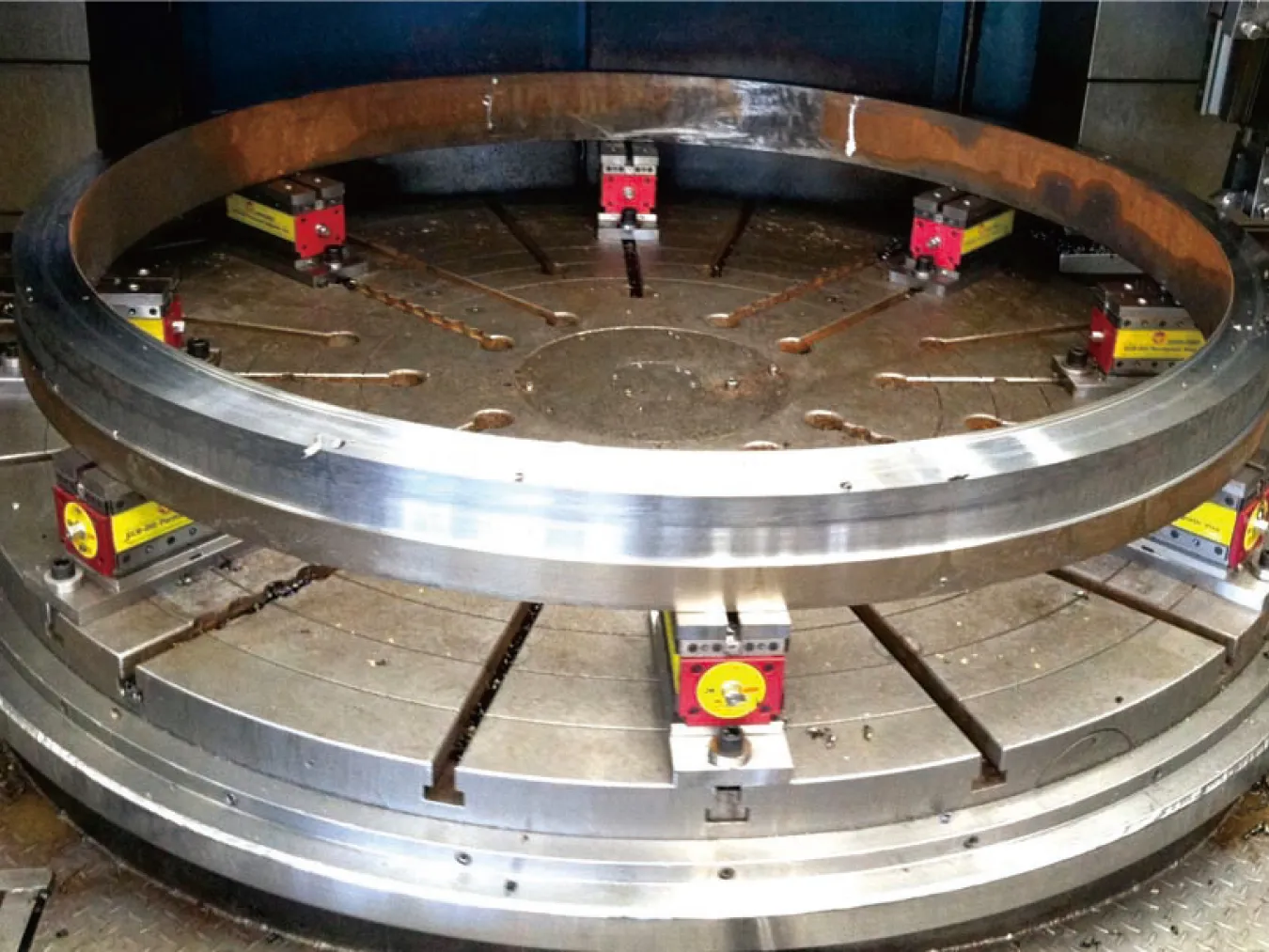

As a general rule, this product is used in sets of 4 units.
※Please feel free to contact us if you are considering using fewer than 4 units.
Specification
The ECB Series is an innovative permanent magnetic clamping block designed for rapid workpiece setups on machining centers and milling machines.
Simultaneous Multi-Block Control: Multiple units can be connected to allow simultaneous ON/OFF operation of all connected blocks with a single command.

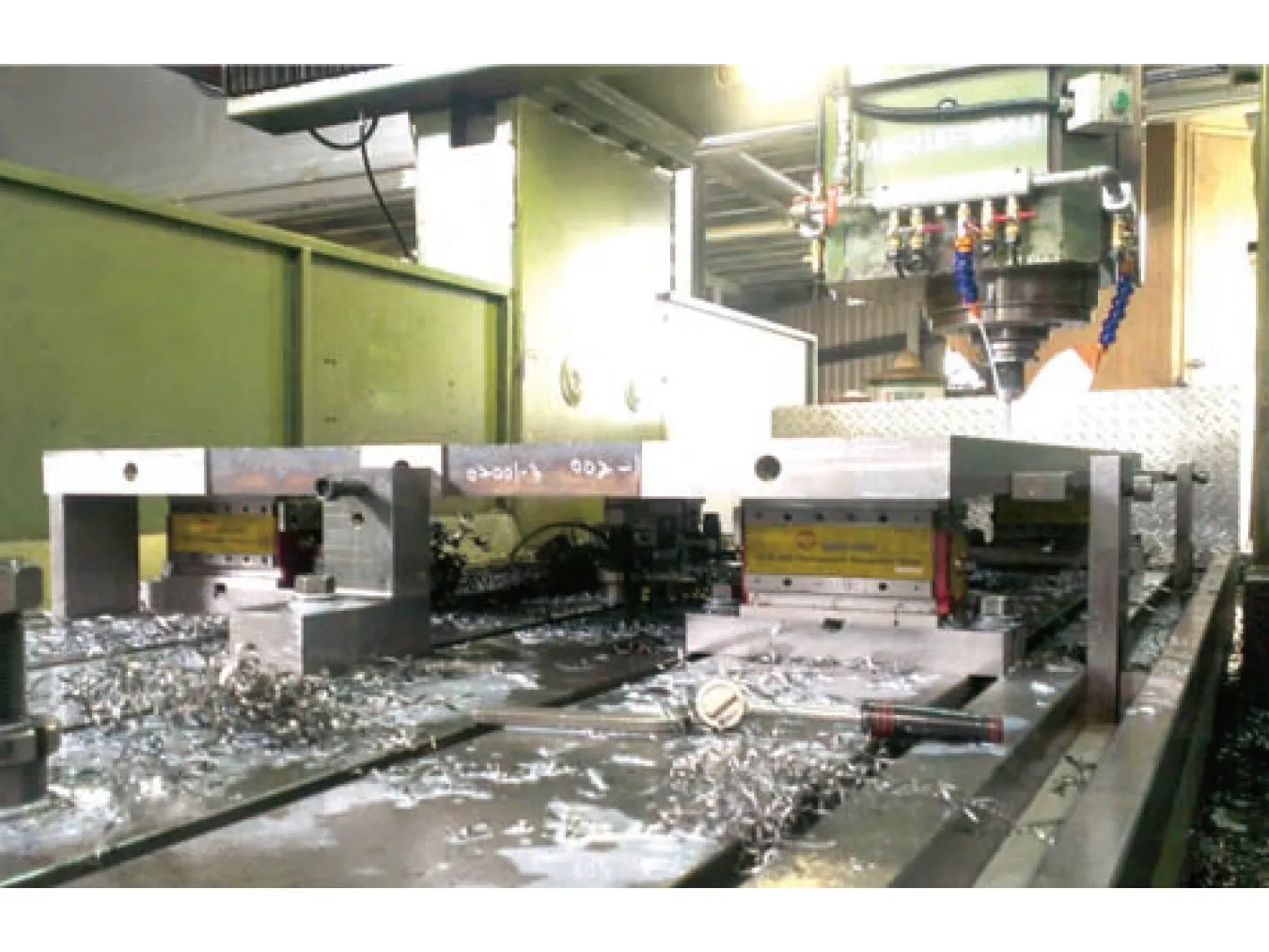

Customizable Induction Blocks Included: Every ECB Series unit comes standard with replaceable induction blocks. Made from machinable raw material (soft steel), these blocks can be milled, ground, or drilled to perfectly match your workpiece geometry.
Product Specifications (Variations)

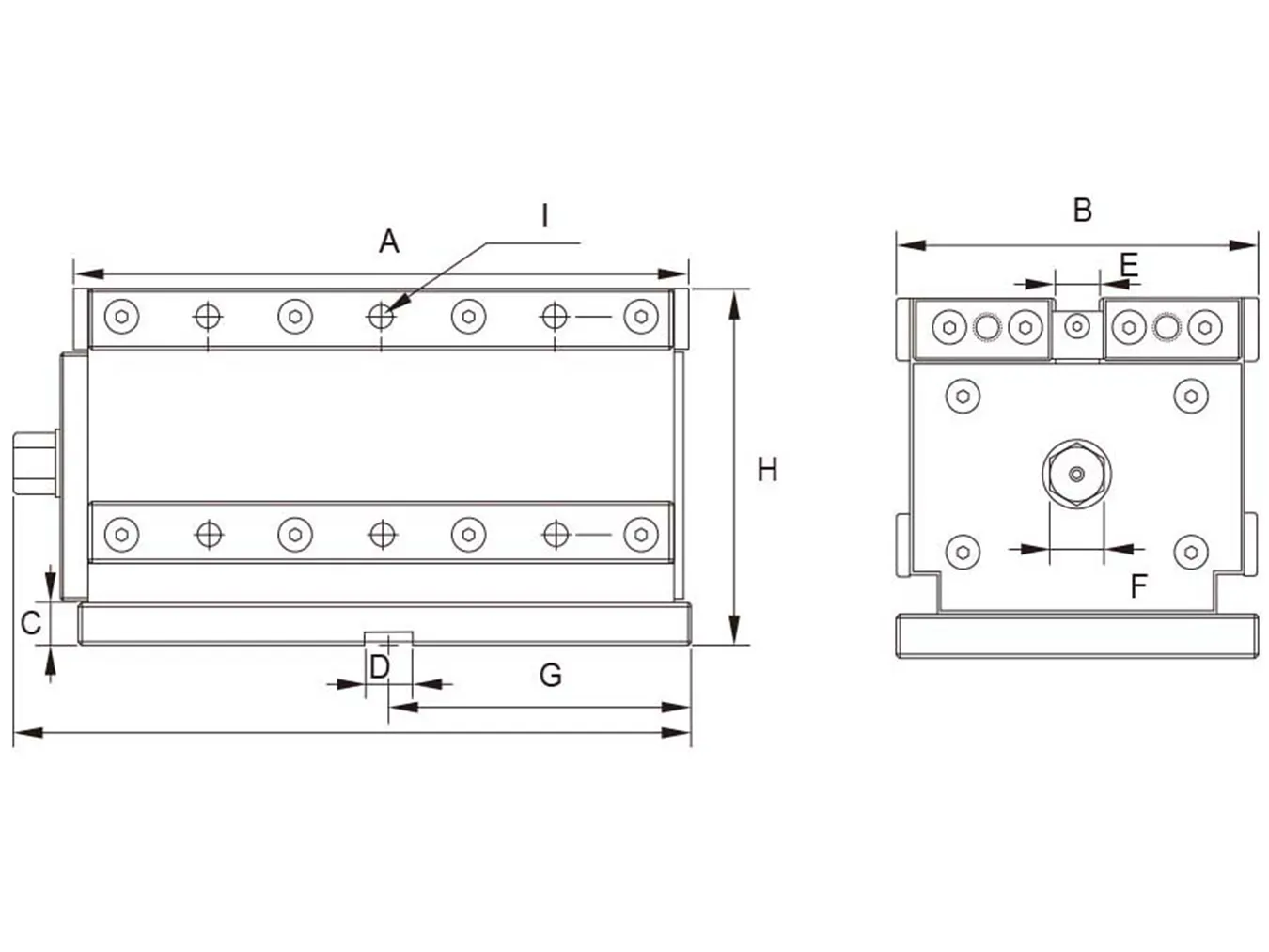

unit：mm| Product NO | Clamping force | Minimum plate thickness | A | B | C | D | E | F | G | H | I | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECB-050 | 500kg | 15mm | 126 | 76 | 10 | 18.1 | 12 | 13 | 61 | 78 | M6 | 7 |
| ECB-075 | 750kg | 15mm | 174 | 76 | 10 | 18.1 | 12 | 13 | 85 | 78 | M6 | 9.5 |
| ECB-120 | 1200kg | 20mm | 188 | 108 | 12 | 18.1 | 16 | 13 | 92.5 | 108 | M8 | 18 |
| ECB-210 | 2100kg | 30mm | 234 | 133 | 16 | 18.1 | 16 | 19 | 115 | 134 | M10 | 36 |
