Countersinker
Product NO: CS90S
Price range: ¥4,100 through ¥30,500
Specification
●For countersinking, chamfering, and deburring applications.
●Features a large rake angle geometry designed for superior cutting performance.
●Particularly well suited for machining stainless steel.
●The 3-flute countersink design provides high machining efficiency.
●TiN coating ensures extended tool life.
●The gold-colored coating makes wear easy to identify.
●Point angle：90°
Product Specifications (Variations)

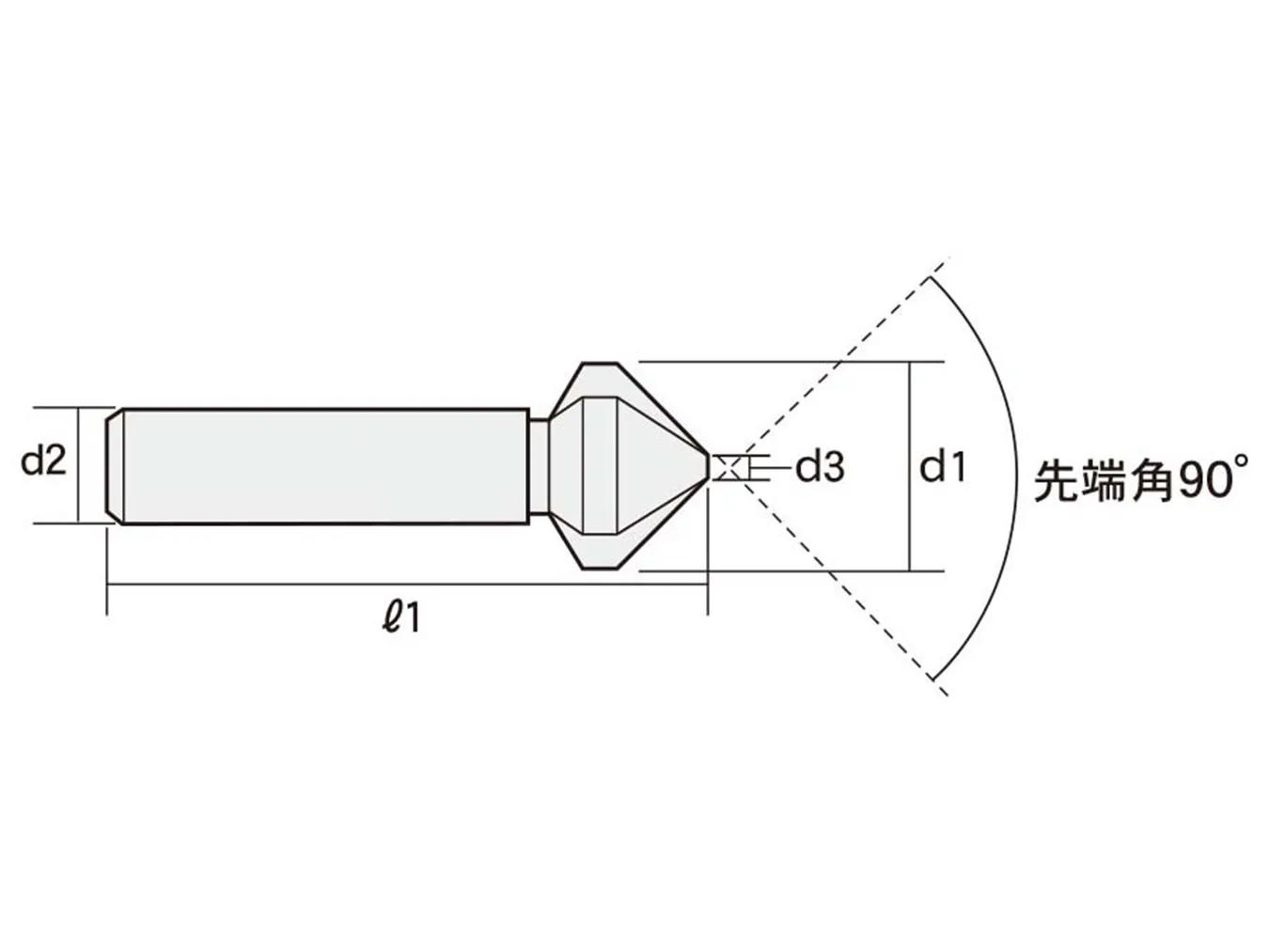

unit：mm| Product NO | Outer diameter d1 | Compatible Countersunk Screws | d3 | Shank diameter d2 | Length l1 |
|---|---|---|---|---|---|
| CS90S-0430TIN | 4.3 | M2.0 | 1.3 | 4 | 40 |
| CS90S-0630TIN | 6.3 | M3.0 | 1.5 | 5 | 45 |
| CS90S-0830TIN | 8.3 | M4.0 | 2 | 6 | 50 |
| CS90S-1040TIN | 10.4 | M5.0 | 2.5 | 6 | 50 |
| CS90S-1240TIN | 12.4 | M6.0 | 2.8 | 8 | 56 |
| CS90S-1650TIN | 16.5 | M8.0 | 3.2 | 10 | 60 |
| CS90S-2050TIN | 20.5 | M10.0 | 3.5 | 10 | 63 |
| CS90S-2500TIN | 25 | M12.0 | 3.8 | 10 | 67 |
| CS90S-3700TIN | 37 | - | 4.8 | 12 | 77 |
