Polyurethane Corner Guard
Product NO: CPUF_A
Price range: ¥25,000 through ¥159,000
Specification
●The Polyurethane Corner Guard is a protective device designed to prevent sling belts from being cut or abraded by sharp load edges. At the same time, it helps protect the corners of the load from damage.

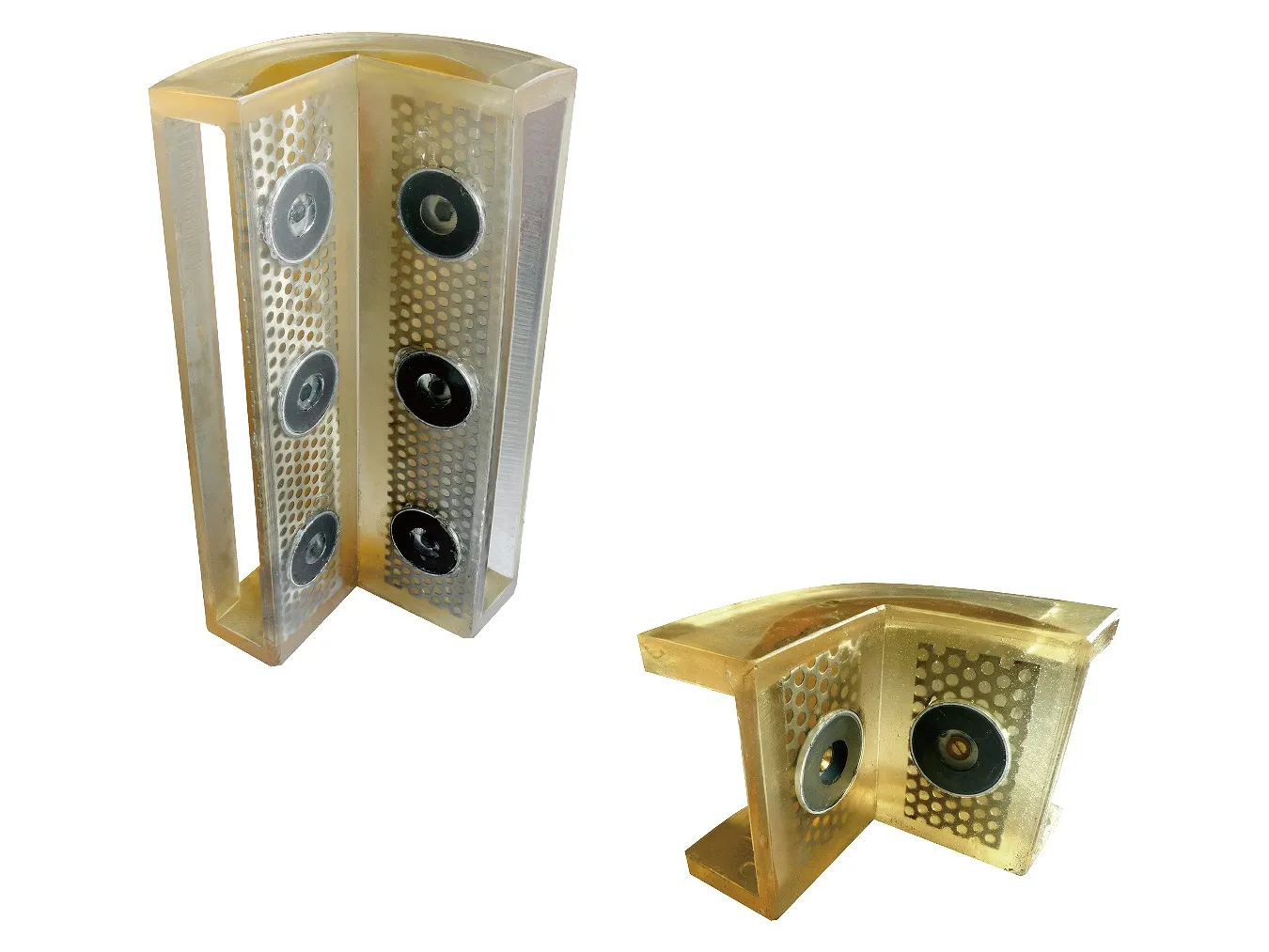

●For ferromagnetic loads, a magnetic corner guard version is available, allowing quick and easy attachment.
Product Specifications (Variations)

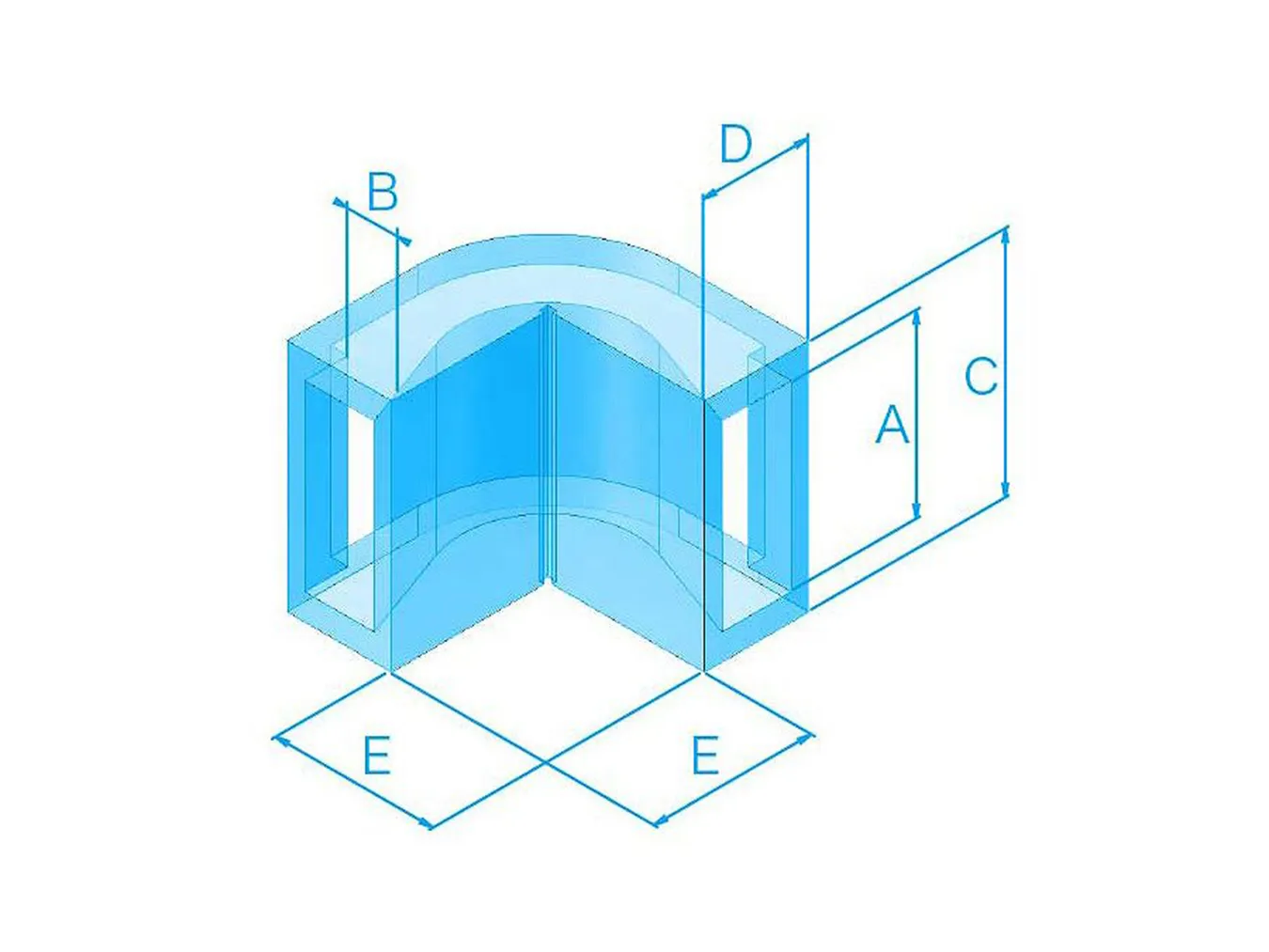

unit：mm| Product NO | A | B | C | D | E | weight（kg） | magnets |
|---|---|---|---|---|---|---|---|
| CPUF70 | 70 | 30 | 100 | 60 | 90 | 0.95 | - |
| CPUF90 | 95 | 30 | 125 | 60 | 90 | 1.15 | - |
| CPUF150 | 155 | 30 | 185 | 60 | 90 | 1.55 | - |
| CPUF245 | 250 | 30 | 280 | 60 | 90 | 2.2 | - |
| CPUF330 | 335 | 30 | 365 | 60 | 90 | 2.8 | - |
| CPUFA70 | 70 | 30 | 100 | 60 | 90 | 1.15 | 2pcs |
| CPUFA90 | 95 | 30 | 125 | 60 | 90 | 1.55 | 2pcs |
| CPUFA150 | 155 | 30 | 185 | 60 | 90 | 1.95 | 4pcs |
| CPUFA245 | 250 | 30 | 280 | 60 | 90 | 2.8 | 6pcs |
| CPUFA330 | 335 | 30 | 365 | 60 | 90 | 3.5 | 6pcs |
